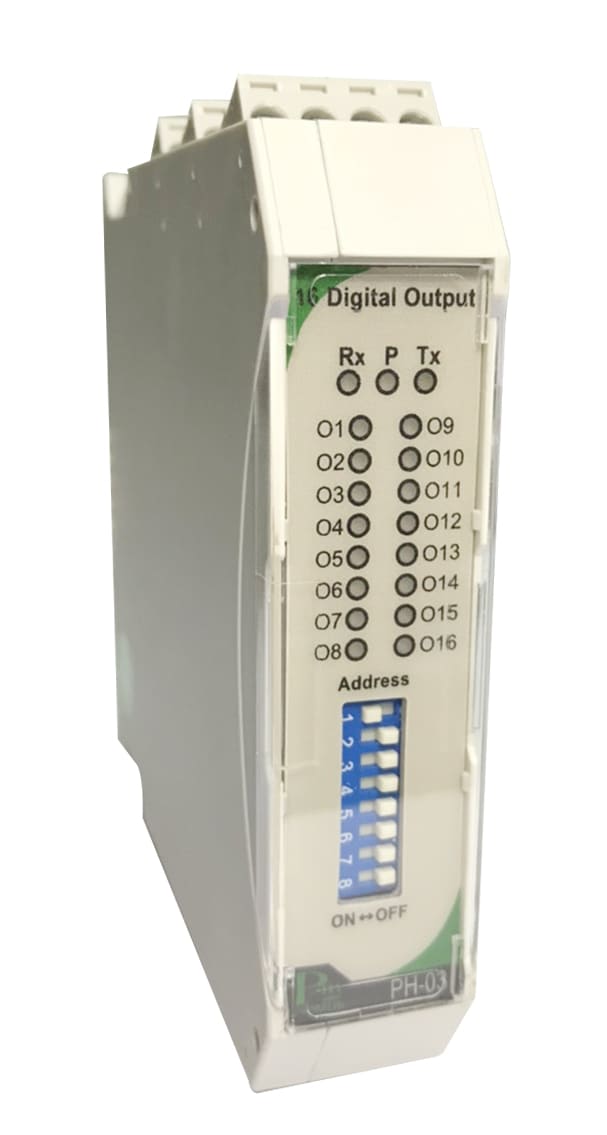

• Modbus RS-485 I/O Module – Digital Output (PH-03)
• PH-03 is a Modbus RS-485 Digital Output module available in
• 4 models: 16, 8, 4, and 2 Digital Outputs.
• NPN Open Collector Outputs, Isolated per channel.
• Operates via RS-485 Modbus Protocol.
• Suitable for Remote I/O applications or I/O expansion for PLCs.
• LED indicators show the status of each output.
PH-03 has 4 models: 16, 8, 4, and 2 Digital Outputs with NPN Open Collector type for connection to relays or other devices. PH-03 is controlled by a Modbus Master Device such as a PC or PLC to operate according to the required functions. It is suitable for Remote I/O or for expanding I/O for PLCs.
• Modbus RS-485 I/O Module – Digital Output (PH-03)
• PH-03 is a Modbus RS-485 Digital Output module available in
• 4 models: 16, 8, 4, and 2 Digital Outputs.
• NPN Open Collector Outputs, Isolated per channel.
• Operates via RS-485 Modbus Protocol.
• Suitable for Remote I/O applications or I/O expansion for PLCs.
• LED indicators show the status of each output.

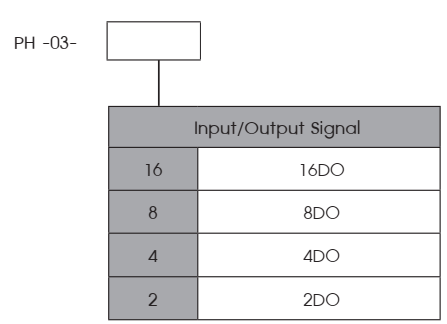

Enter the model information you want
No application picture available
