Size: 23x113x110mm. Input: K, J, R, T, N, S, E, PT100, 0-20mA, 4-20mA, 0-100mA, 0-75mVDC, 0-150mVDC, 0-1VDC, 0-10VDC, 0-500VDC, 0-500VAC, 0-5A AC, 0-100 Ohm, 0-1k Ohm, 0-10k, Ohm, 0-100k Ohm, Universal Input Output1: 4-20mA, 0-10VDC, 20-4mA, 10-0VDC Output2: None, 4-20mA, 0-10VDC, 20-4mA, 10-0VDC Option: None Power Supply: 100-250 VAC, 12-24 VDC Type Output: 4-Wire

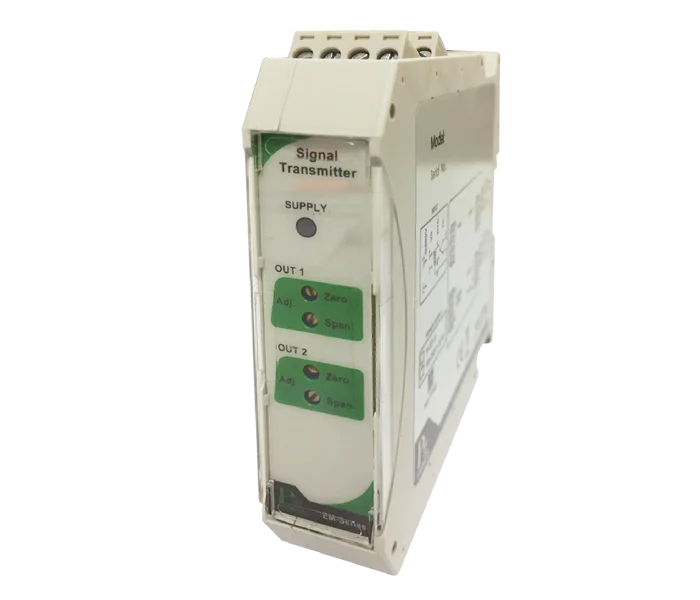

• EM-N-Series: Signal Transmitter (Fixed Input) is an industrial
device designed to convert electrical input signals into standard
analog signals.
• Supports AC/DC Current, AC/DC Voltage, Resistance, and Multi-Input
options for Thermocouples and PT100 (RTD).
• Standard Analog Output 4-20mA, 0-10VDC output signals.
• Isolation between Input and Output.
• Maximum 2 outputs.
• DIN RAIL Mounting Installation.
Only 0 left in stock
