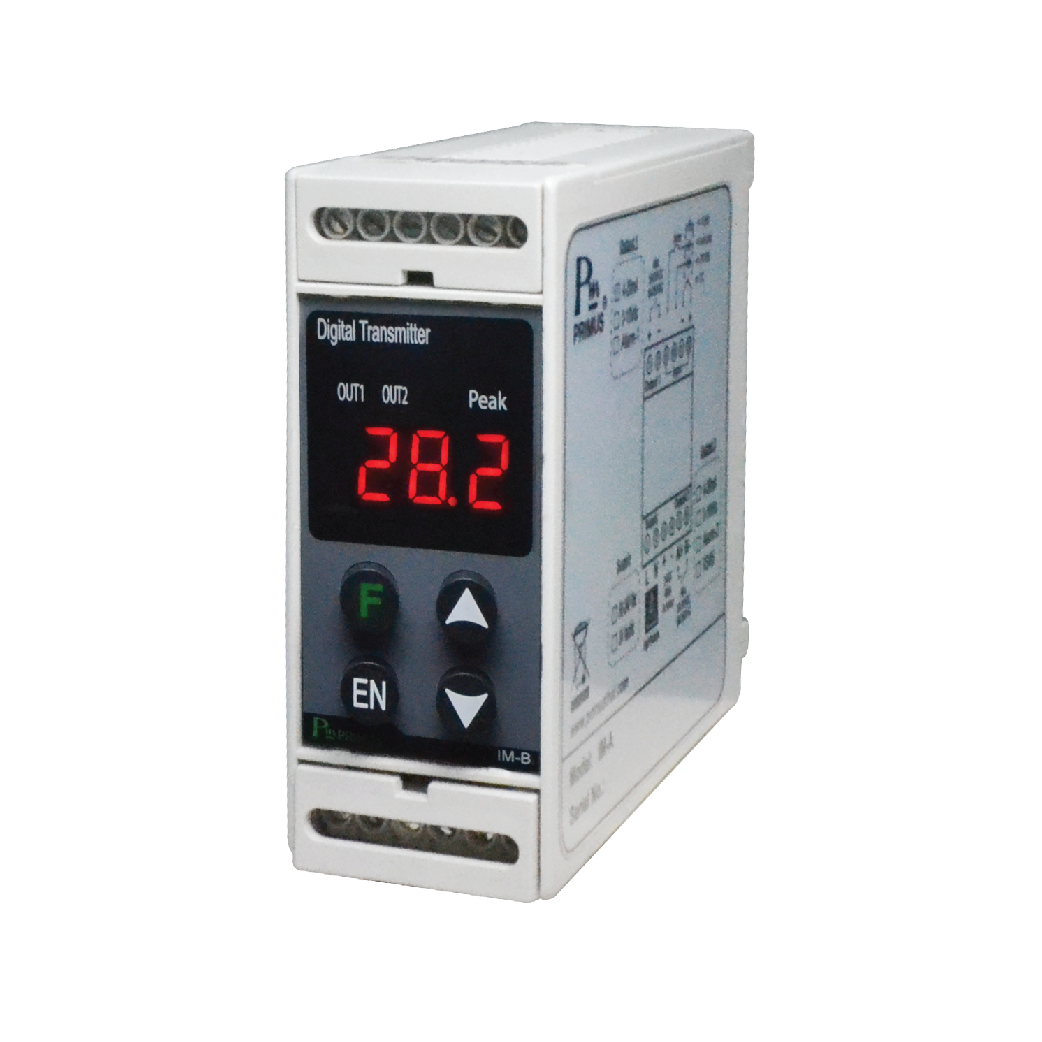

• Digital Signal Transmitter: IM-Series is a device that converts electrical signals into standard
analog signals using a digital system, featuring a display for easy operation.
• Input and Output: Users can select input types and adjust High-Low limits via push buttons,
allowing for customizable signal conversion ranges.
• Supports input types of AC/DC Current, AC/DC Voltage, Frequency, RPM, and Multi-Input
for Thermocouple and PT100 (RTD).
• 2 Standard Analog Outputs:
- Current: 4-20mA
- Voltage: 0-10VDC
• Input and Output are isolated from each other.
• Programmable Output: Can be set to either Direct or Inverse signals.
• Peak Hold Function displays the maximum measured value.
• Lock Key Function to revents unauthorized changes to settings via the button switches.
• DIN RAIL Mounting Installation.
• Communicating with computers via RS-485 Modbus RTU Protocol.
• 1-row, 4-digit 7-Segment digital display, capable of showing both input and output signal values.
• 4 Alarm Functions.
Digital Signal Transmitter: IM-Series is a digital device designed to convert electrical signals into standard analog signals, featuring an digital display for user-friendly operation input and output. Users can select input types and adjust High-Low limit scales via push buttons to define specific ranges as required. The unit support input signal of AC/DC Current, AC/DC Voltage, Frequency, RPM, and Multi-Input support for Thermocouples and PT100 (RTD) sensors.
• Digital Signal Transmitter: IM-Series is a device that converts electrical signals into standard
analog signals using a digital system, featuring a display for easy operation.
• Input and Output: Users can select input types and adjust High-Low limits via push buttons,
allowing for customizable signal conversion ranges.
• Supports input types of AC/DC Current, AC/DC Voltage, Frequency, RPM, and Multi-Input
for Thermocouple and PT100 (RTD).
• 2 Standard Analog Outputs:
- Current: 4-20mA
- Voltage: 0-10VDC
• Input and Output are isolated from each other.
• Programmable Output: Can be set to either Direct or Inverse signals.
• Peak Hold Function displays the maximum measured value.
• Lock Key Function to revents unauthorized changes to settings via the button switches.
• DIN RAIL Mounting Installation.
• Communicating with computers via RS-485 Modbus RTU Protocol.
• 1-row, 4-digit 7-Segment digital display, capable of showing both input and output signal values.
• 4 Alarm Functions.
