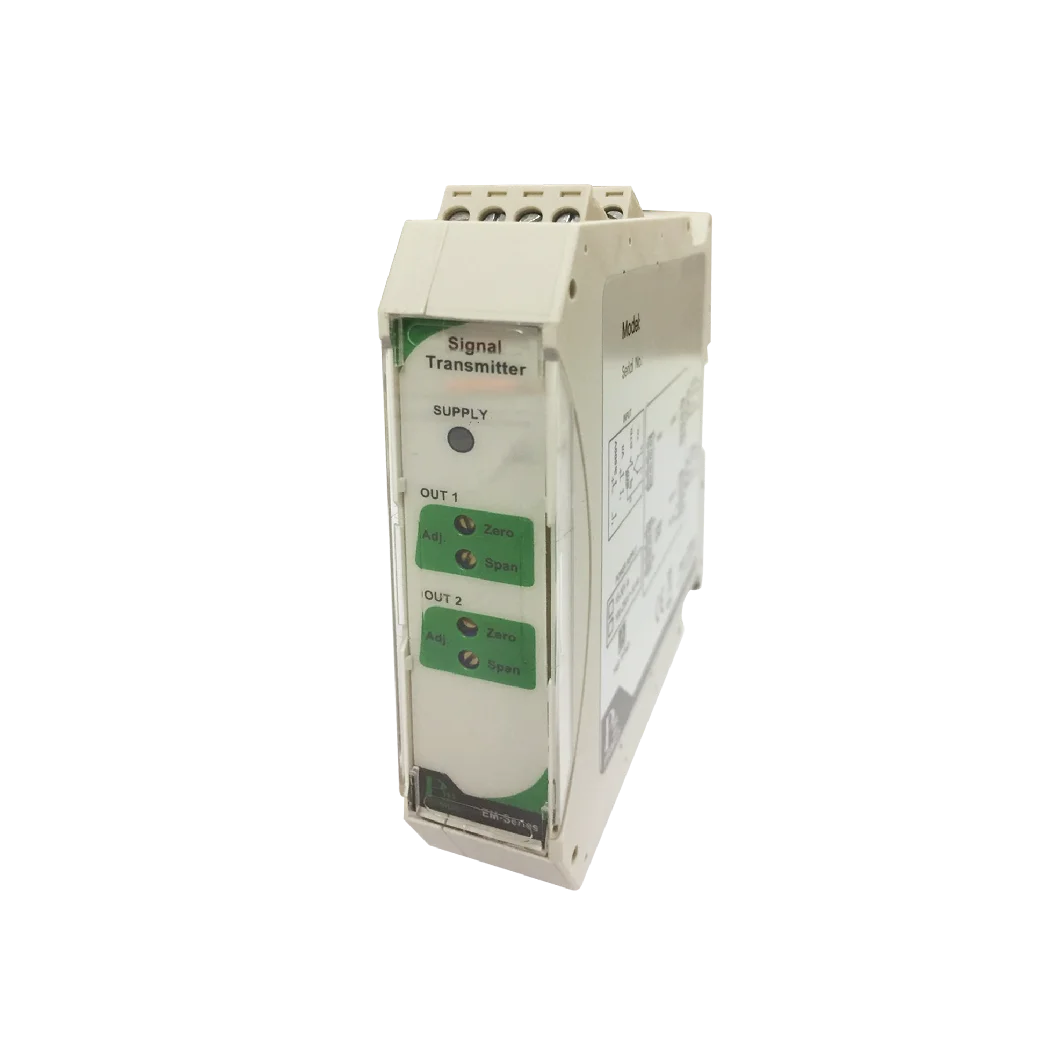

• EM-N-Series: Signal Transmitter (Fixed Input) is an industrial
device designed to convert electrical input signals into standard
analog signals.
• Supports AC/DC Current, AC/DC Voltage, Resistance, and Multi-Input
options for Thermocouples and PT100 (RTD).
• Standard Analog Output 4-20mA, 0-10VDC output signals.
• Isolation between Input and Output.
• Maximum 2 outputs.
• DIN RAIL Mounting Installation.
EM-N-Series functions as a signal converter that transforms input signals into standard analog outputs, such as 4-20 mA or 0-10 VDC. There is an isolation between Input and Output included seperated grounds. The converted output can be connected with various measurement and control instruments. Additionally, users can specify their required output either Direct or Inverse at the time of ordering.
• EM-N-Series: Signal Transmitter (Fixed Input) is an industrial
device designed to convert electrical input signals into standard
analog signals.
• Supports AC/DC Current, AC/DC Voltage, Resistance, and Multi-Input
options for Thermocouples and PT100 (RTD).
• Standard Analog Output 4-20mA, 0-10VDC output signals.
• Isolation between Input and Output.
• Maximum 2 outputs.
• DIN RAIL Mounting Installation.

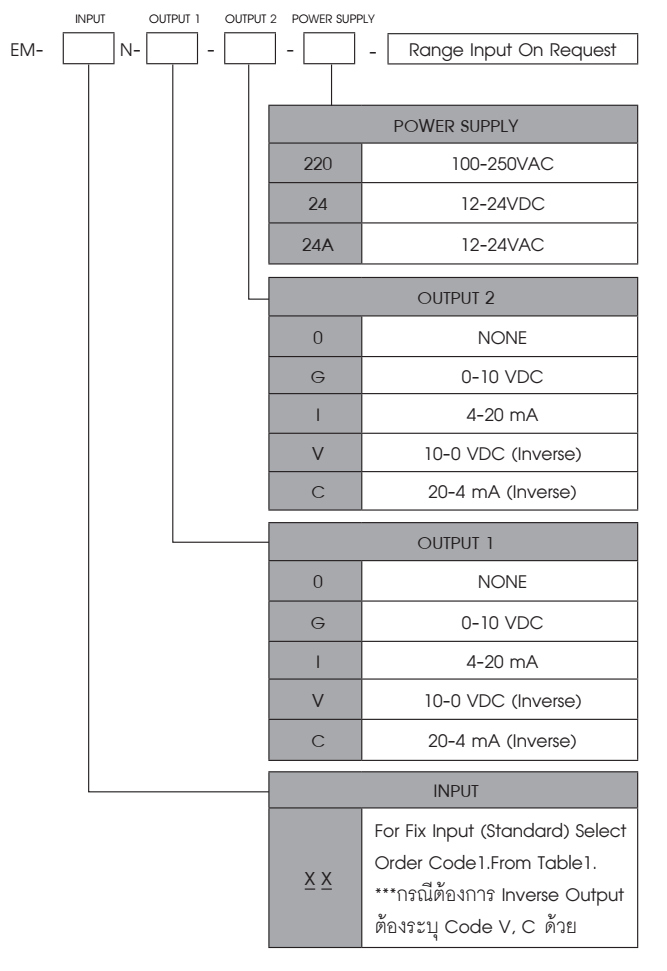

Enter the model information you want
No application picture available
