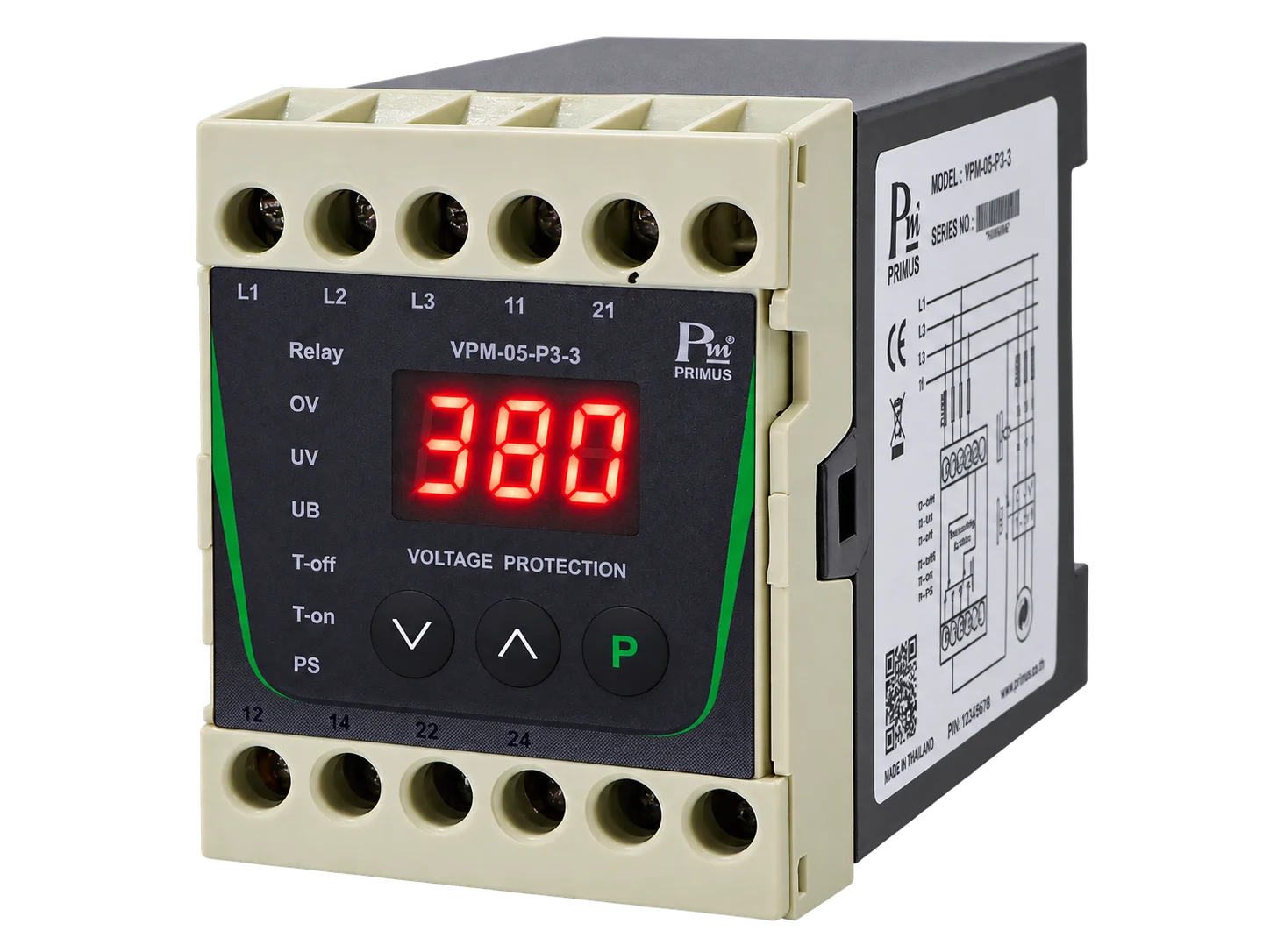

• Digital Voltage Protection Relay: VPM-05 Series is a relay designed for
protecting against undervoltage, overvoltage, phase imbalance, and
incorrect phase sequence.
• Supports both 1-phase 2-wire systems and 3-phase 3-wire/4-wire systems.
• Measures values accurately using True RMS.
• Features simple wiring and easy setup procedures for user convenience.
• Includes a memory function for storing the most recent trip event (Last Fault).
• Displays the voltage value using a 3-digit 0.39-inch 7-segment LED.
• Relay Output rated 5 A, 250 VAC, DPDT.
• DIN rail mounting.
• LED indicators show the status of the relay output.
Digital Voltage Protection Relay : VPM-05-Series is a protection relay under-over volatge, Unbalance phase and Phase sequence. Available for 1-Phase 2 Wires and 3-Phase 3, 3 Wires/4 Wires to measure accuracy True RMS. And it has memory for lasted fault.
• Digital Voltage Protection Relay: VPM-05 Series is a relay designed for
protecting against undervoltage, overvoltage, phase imbalance, and
incorrect phase sequence.
• Supports both 1-phase 2-wire systems and 3-phase 3-wire/4-wire systems.
• Measures values accurately using True RMS.
• Features simple wiring and easy setup procedures for user convenience.
• Includes a memory function for storing the most recent trip event (Last Fault).
• Displays the voltage value using a 3-digit 0.39-inch 7-segment LED.
• Relay Output rated 5 A, 250 VAC, DPDT.
• DIN rail mounting.
• LED indicators show the status of the relay output.
