• Analog Thermostat: CMA-001/CMA-001-E provides analog
temperature control for filter fans inside electrical or
control cabinets.
• 2 type of products
- CMA-001 is an internal temperature sensor probe.
- CMA-001-E is an external temperature sensor probe.
• 2 relay outputs (5 A, 250 VAC / 5 A, 30 VDC) to control 2 fans
simultaneously.
• Hysteresis: 1–5 °C to adjust the ON/OFF gap of the fan.
• Convenient and easy to install with DIN rail mounting

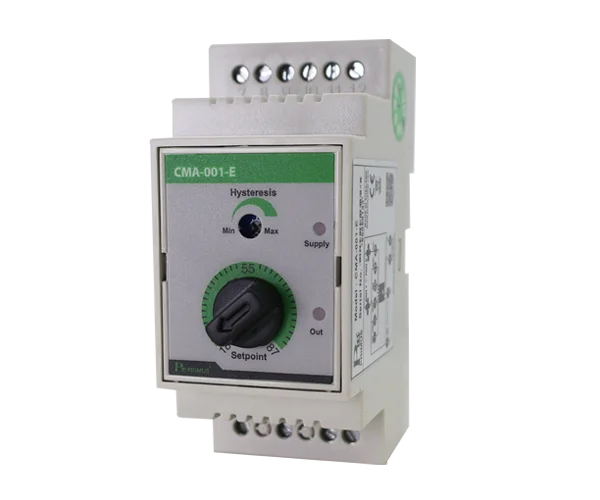

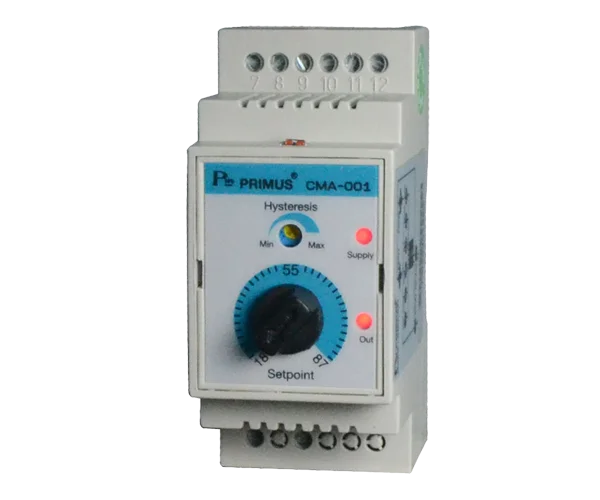

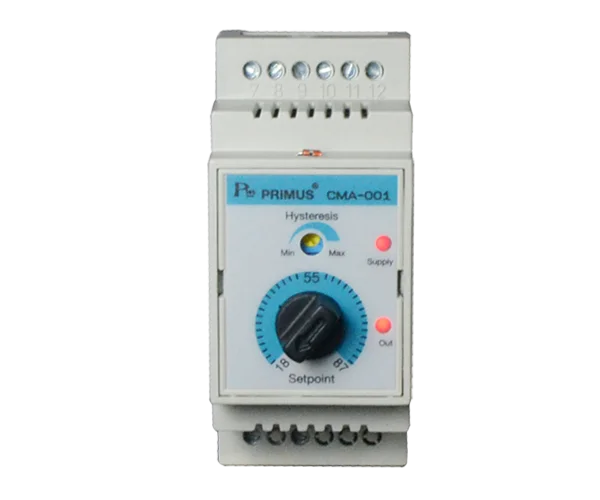

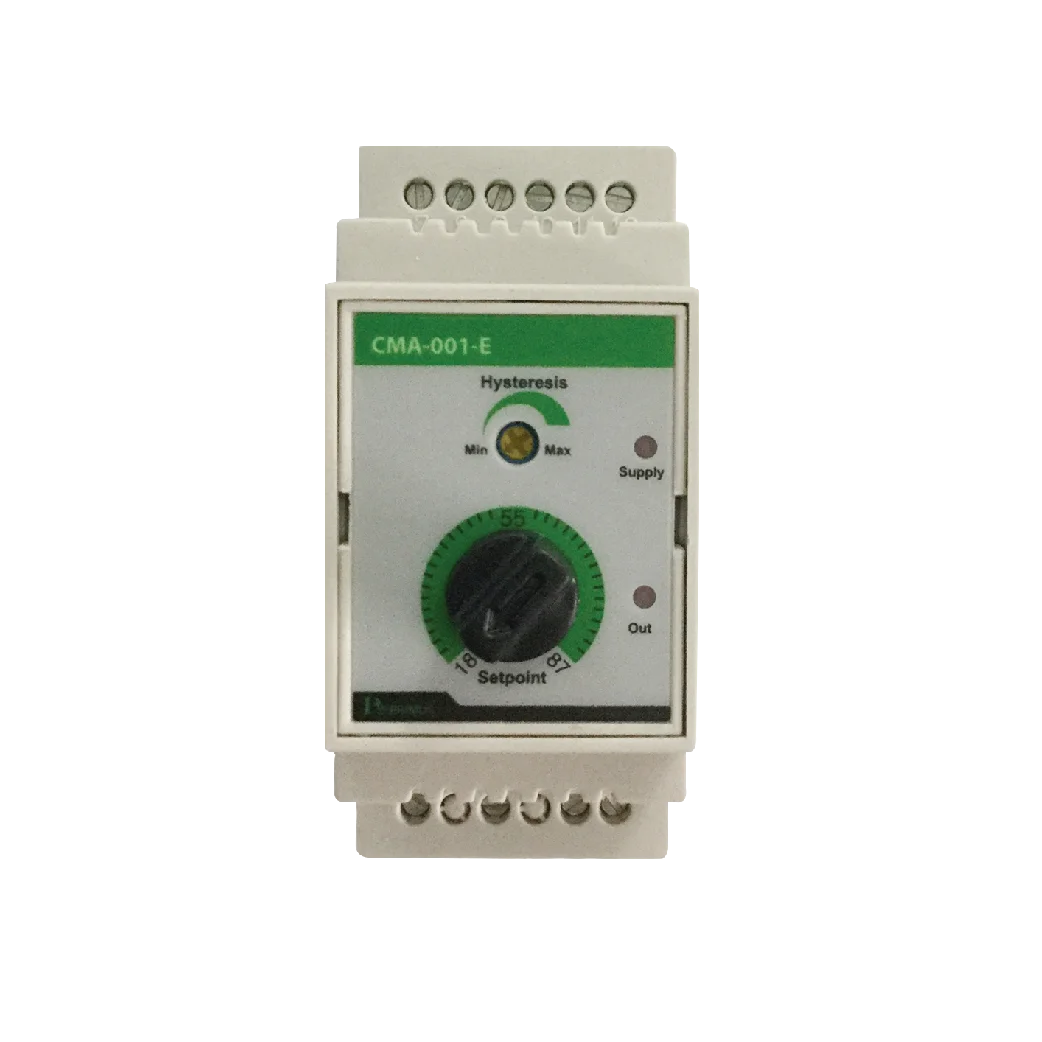

Analog Thermostat: CMA-001 / CMA-001-E is a temperature controller designed for cooling fans inside electrical and control cabinets. This analog series features two models: CMA-001, which includes a built-in temperature sensor, and CMA-001-E, which comes with a remote temperature probe. Both models are equipped with 2 Relay Outputs (5A 250 VAC / 5A 30 VDC), allowing for the simultaneous control of two fans. Additionally, they feature an adjustable Hysteresis of 1-5°C to fine-tune the differential between the fan's activation and deactivation points. These units are user-friendly and designed for easy installation on a DIN RAIL.
• Analog Thermostat: CMA-001/CMA-001-E provides analog
temperature control for filter fans inside electrical or
control cabinets.
• 2 type of products
- CMA-001 is an internal temperature sensor probe.
- CMA-001-E is an external temperature sensor probe.
• 2 relay outputs (5 A, 250 VAC / 5 A, 30 VDC) to control 2 fans
simultaneously.
• Hysteresis: 1–5 °C to adjust the ON/OFF gap of the fan.
• Convenient and easy to install with DIN rail mounting

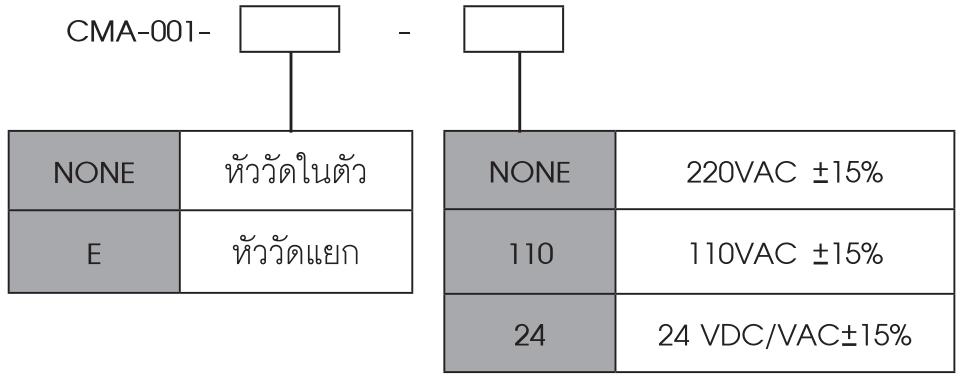

Enter the model information you want
No application picture available
