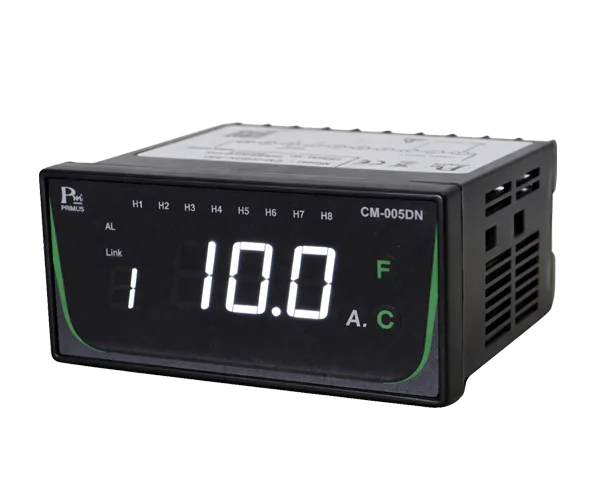

• Digital Monitor for Heater Break Alarm CM-005DN is a device for
displaying current values and heater status. It is used together with
the CM-005N-4CH to check for heater break conditions.
• Can be connected with up to 2 units of CM-005N-4CH via the monitor
panel, allowing display of current values for up to 8 heaters.
• Equipped with LED indicators showing the alarm status of each
channel. Heater break current cutoff can be set, and Auto/Manual
modes are available to view the status of each heater.
• Displays heater current using a red 3-digit 7-segment display (0.56 inch)
and displays the heater position using a red 1-digit 7-segment display
(0.39 inch).
• Includes 1 decimal point.
After connecting the CM-005DN to the monitor panel of the CM-005N-4CH, if a Heater Break (heater open, no current flow) or Heater Short (heater continuously conducting current) occurs due to a short circuit in the solid state relay or welded contacts of the magnetic contactor while the output of the temperature controller is not operating, the LED of the corresponding heater position on the CM-005DN will turn on or flash together with the alarm. The display will show “hb” (Heater Break) or “hs” (Heater Short) on the 7-segment
display.
• Digital Monitor for Heater Break Alarm CM-005DN is a device for
displaying current values and heater status. It is used together with
the CM-005N-4CH to check for heater break conditions.
• Can be connected with up to 2 units of CM-005N-4CH via the monitor
panel, allowing display of current values for up to 8 heaters.
• Equipped with LED indicators showing the alarm status of each
channel. Heater break current cutoff can be set, and Auto/Manual
modes are available to view the status of each heater.
• Displays heater current using a red 3-digit 7-segment display (0.56 inch)
and displays the heater position using a red 1-digit 7-segment display
(0.39 inch).
• Includes 1 decimal point.
