Digital Volt Meter (True RMS)

• Digital Volt Meter (True RMS) / Mini Digital Volt Meter (True RMS)

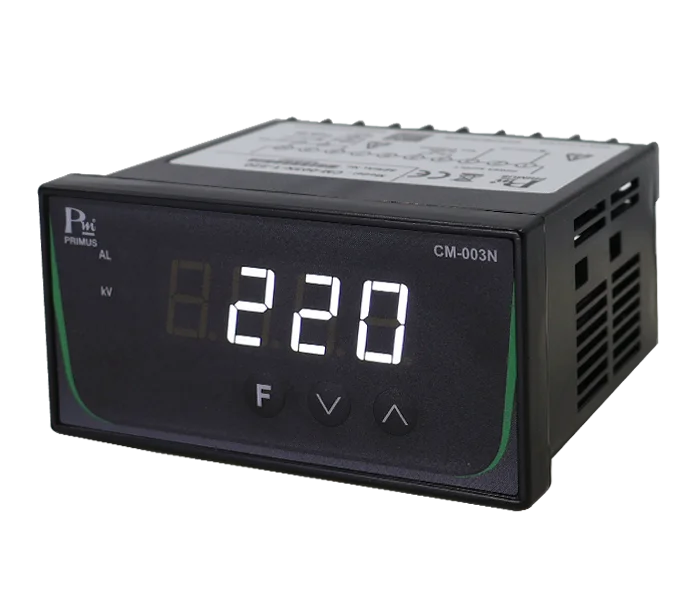

: CM-003N / DCM-003N is a meter for measuring and displaying alternating
current (AC) voltage with TRUE RMS at 50/60 Hz, and direct current (DC) voltage.
• Measuring ranges: 5–500 VAC, 15–999.9 VAC, 0–50 VDC, 0–500 VDC
• Display: 4-digit 7-segment display, 0.56 inch (for CM-003N) and 0.39
inch (for DCM-003N).
• Alarm: 1 alarm relay output with 4 selectable alarm functions
    - Absolute value high low band alarm
    - Absolute value high alarm
    - Absolute value low alarm
    - Absolute value high low range alarm
• PT ratio: Adjustable from 1.0–400.0, with LED indication for kV units
• Available sizes: CM-003N (48 × 96 mm.) and DCM-003N (35.25 × 79.6 mm.)
