Size: 35.25x79.6 Input Current: 0-5AAC, 0-75mVDC/0-150mVDC Input Voltage: None Digits&Size 7-Seg&Rows: 4 Digit 0.39Inch Alarm Output: 1 Relay Transfer: None Power Supply: 24VDC, 100-240VAC

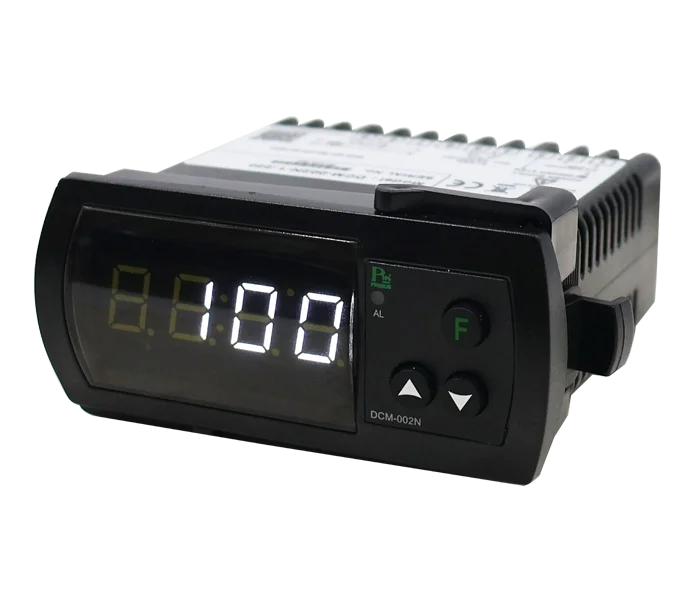

• Digital Amp Meter (True RMS) / Mini Digital Amp Meter (True RMS): CM-002N / DCM-002N
• These devices are digital meters designed to measure and display electrical current values.
• They support AC current (True RMS) at 50–60 Hz and DC current.
• AC current measurement range: 0–5 A (direct), 0–9,999 A (with 5 A CT).
• DC current measurement range: 0–75 mVDC / 0–150 mVDC for R-shunt.
• 1 Alarm Relay Output with 4 selectable alarm functions:
- Absolute value high/low band alarm
- Absolute value high alarm
- Absolute value low alarm
- Absolute value high/low range alarm
• CT ratio adjustable from 1 to 2,000 (10,000/5 A)
• Displayed by a 4-digit 7-segment display, size 0.56 inch (for CM-002N) and 0.39 inch.
• Available in two sizes: CM-002N (48 × 96 mm) and DCM-002N (35.25 × 79.6 mm).
