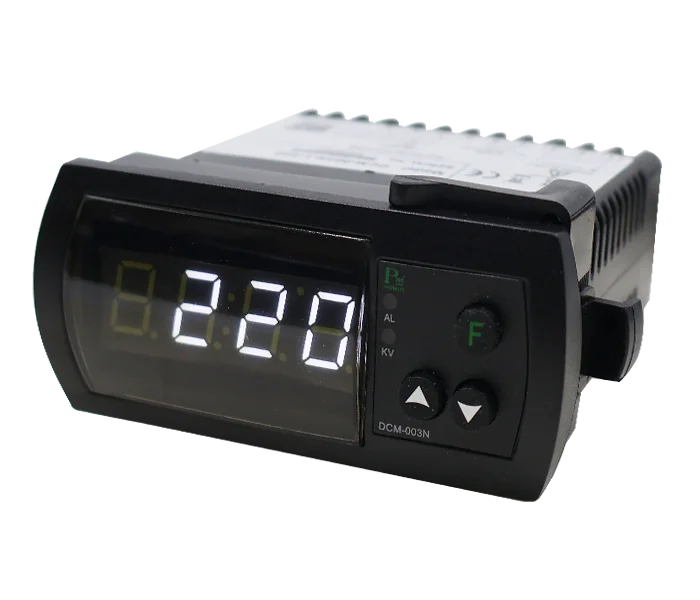

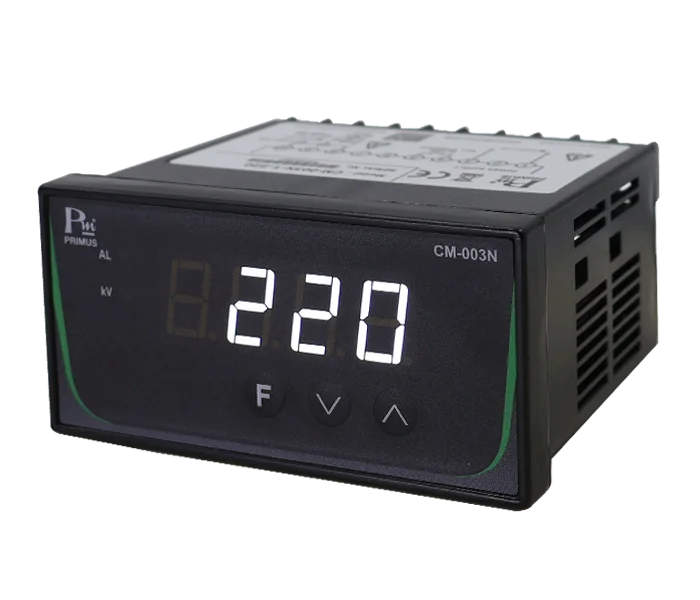

• Digital Volt Meter (True RMS) / Mini Digital Volt Meter (True RMS)
: CM-003N / DCM-003N is a meter for measuring and displaying alternating
current (AC) voltage with TRUE RMS at 50/60 Hz, and direct current (DC) voltage.
• Measuring ranges: 5–500 VAC, 15–999.9 VAC, 0–50 VDC, 0–500 VDC
• Display: 4-digit 7-segment display, 0.56 inch (for CM-003N) and 0.39
inch (for DCM-003N).
• Alarm: 1 alarm relay output with 4 selectable alarm functions
- Absolute value high low band alarm
- Absolute value high alarm
- Absolute value low alarm
- Absolute value high low range alarm
• PT ratio: Adjustable from 1.0–400.0, with LED indication for kV units
• Available sizes: CM-003N (48 × 96 mm.) and DCM-003N (35.25 × 79.6 mm.)
CM-003N/DCM-003N is a meter for measuring and displaying alternating current (AC) voltage with TRUE RMS, with measuring ranges of 5–500 VAC and 15–999.9 VAC, and an adjustable PT ratio from 1–400. For the direct current (DC) voltage model, the measuring ranges are 0–50 VDC and 0–500 VDC with direct input. It has 1 alarm relay output with 4 configurable functions for load switching as required.
• Digital Volt Meter (True RMS) / Mini Digital Volt Meter (True RMS)
: CM-003N / DCM-003N is a meter for measuring and displaying alternating
current (AC) voltage with TRUE RMS at 50/60 Hz, and direct current (DC) voltage.
• Measuring ranges: 5–500 VAC, 15–999.9 VAC, 0–50 VDC, 0–500 VDC
• Display: 4-digit 7-segment display, 0.56 inch (for CM-003N) and 0.39
inch (for DCM-003N).
• Alarm: 1 alarm relay output with 4 selectable alarm functions
- Absolute value high low band alarm
- Absolute value high alarm
- Absolute value low alarm
- Absolute value high low range alarm
• PT ratio: Adjustable from 1.0–400.0, with LED indication for kV units
• Available sizes: CM-003N (48 × 96 mm.) and DCM-003N (35.25 × 79.6 mm.)
