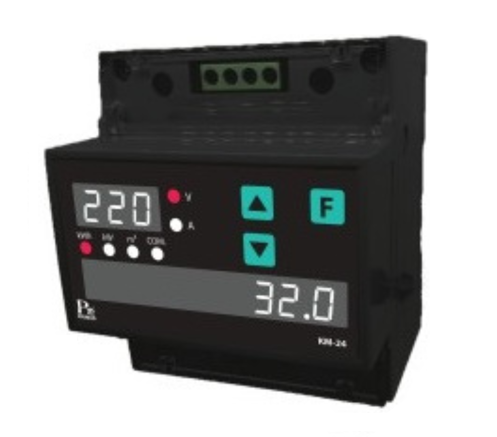

• Single Phase Energy Meter With RS-485 : KM-24-M
is an energy meter for single-phase electrical systems.
• It can measure voltage (V), current (A), power (kW), electrical energy
(kWh) and display water consumption in cubic meters (m³) via pulse
input from a water meter.
• Voltage measurement range: 110 – 240 VAC.
• Current measurement range: 0.02 – 65 A (direct connection).
• Communication: RS-485 Modbus RTU Protocol, supporting installation
of more than 127 meters per system.
• Equipped with an input for receiving pulse signals from a water meter to
transmit water consumption data in cubic meters (m³).
• True RMS measurement provides high accuracy.
• 7-segment LED display.
• Complies with IEC 62053-21:2020 and CE-Mark standards.
KM-24-M is an electrical energy meter that measures V, A, kW, and kWh, supports direct current measurement up to 65 A, and can display water consumption in cubic meters (m³) by receiving pulse signals from a water meter.
• Single Phase Energy Meter With RS-485 : KM-24-M
is an energy meter for single-phase electrical systems.
• It can measure voltage (V), current (A), power (kW), electrical energy
(kWh) and display water consumption in cubic meters (m³) via pulse
input from a water meter.
• Voltage measurement range: 110 – 240 VAC.
• Current measurement range: 0.02 – 65 A (direct connection).
• Communication: RS-485 Modbus RTU Protocol, supporting installation
of more than 127 meters per system.
• Equipped with an input for receiving pulse signals from a water meter to
transmit water consumption data in cubic meters (m³).
• True RMS measurement provides high accuracy.
• 7-segment LED display.
• Complies with IEC 62053-21:2020 and CE-Mark standards.
