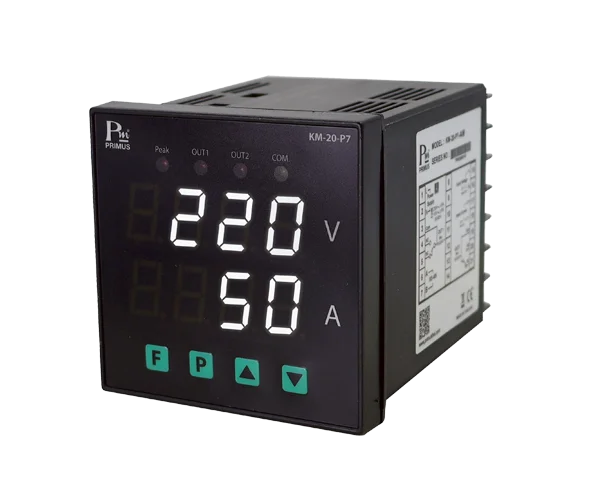

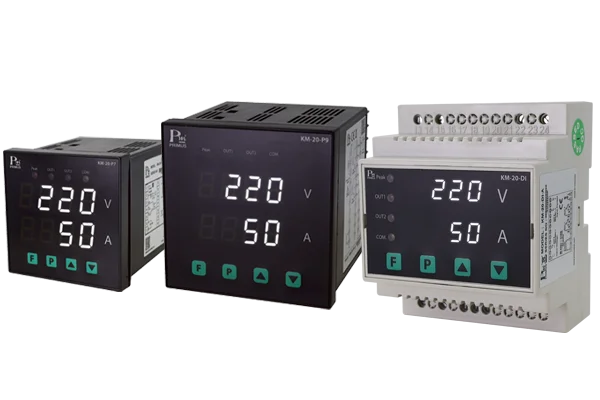

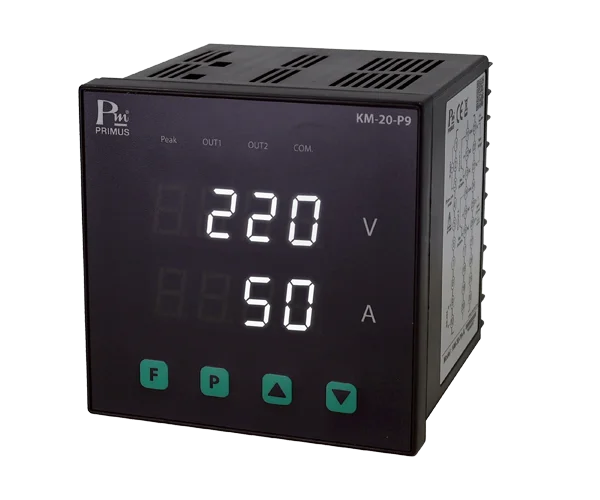

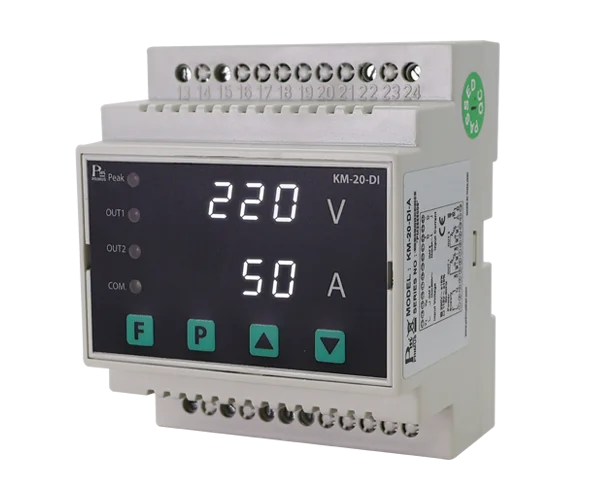

• Single Phase Volt-Amp Meter with Protection Relay : KM-20
is a meter for measuring voltage and current (Volt–Amp) with
a built-in protection relay for single-phase power systems.
• Under and Over Voltage Protection Relay
• Under and Over Current Protection Relay
• Voltage measuring range: 20–500 VAC
• Current measuring range: 0.01–5 A, with a maximum display up
to 9999 A via CT ratio range 1–2000 (10000/5A)
• RS-485 Modbus RTU Protocol
• LED indicators for output operation and peak values
• Fault display with memory
• Manual / Auto display for current and voltage values
• Peak Hold function for maximum voltage and current values
KM-20 is a device that measures and displays both voltage and current in a single unit. It is equipped with voltage protection relays and current relays to protect against undervoltage and overvoltage conditions. The unit can also store the maximum peak values of voltage and current, allowing these data to be used for system analysis and performance evaluation.
• Single Phase Volt-Amp Meter with Protection Relay : KM-20
is a meter for measuring voltage and current (Volt–Amp) with
a built-in protection relay for single-phase power systems.
• Under and Over Voltage Protection Relay
• Under and Over Current Protection Relay
• Voltage measuring range: 20–500 VAC
• Current measuring range: 0.01–5 A, with a maximum display up
to 9999 A via CT ratio range 1–2000 (10000/5A)
• RS-485 Modbus RTU Protocol
• LED indicators for output operation and peak values
• Fault display with memory
• Manual / Auto display for current and voltage values
• Peak Hold function for maximum voltage and current values
