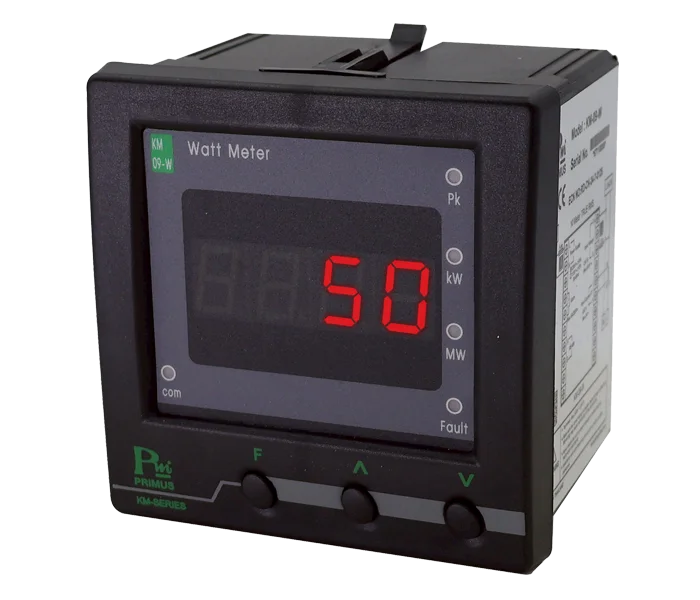

• 1 Phase Watt-MD Meter True RMS : KM-09-W is a meter for measuring
electrical power (Watt) and Maximum Demand (MD) for a single-phase
power system.
• Can be connected with a Current Transformer (CT) up to
10,000/5A and PT Ratio 0.1–400.0
• True RMS measurement provides high accuracy.
• Equipped with 1 Alarm Relay Output with 4 selectable
Alarm Functions.
• Includes Peak Hold function to display the maximum Watt value
in the system.
• LED indicators show operating status and electrical units.
• Display uses a 4-digit 7-Segment, 0.56-inch, single row.
1 Phase Watt-MD Meter True RMS: KM-09-W is a power (Watt) and Maximum Demand (MD) meter designed for single-phase electrical systems. The device supports CT Ratio settings up to 10,000/5A and PT Ratio settings from 0.1 to 400.0. It utilizes True RMS measurement for high accuracy. It is equipped with 1 Alarm Relay Output featuring 4 configurable alarm functions. A Peak Hold function is included to monitor the maximum Watt value in the system. The unit features LED indicators for operational status and electrical units, with a 1-row, 4-digit 0.56-inch 7-Segment display.
• 1 Phase Watt-MD Meter True RMS : KM-09-W is a meter for measuring
electrical power (Watt) and Maximum Demand (MD) for a single-phase
power system.
• Can be connected with a Current Transformer (CT) up to
10,000/5A and PT Ratio 0.1–400.0
• True RMS measurement provides high accuracy.
• Equipped with 1 Alarm Relay Output with 4 selectable
Alarm Functions.
• Includes Peak Hold function to display the maximum Watt value
in the system.
• LED indicators show operating status and electrical units.
• Display uses a 4-digit 7-Segment, 0.56-inch, single row.
