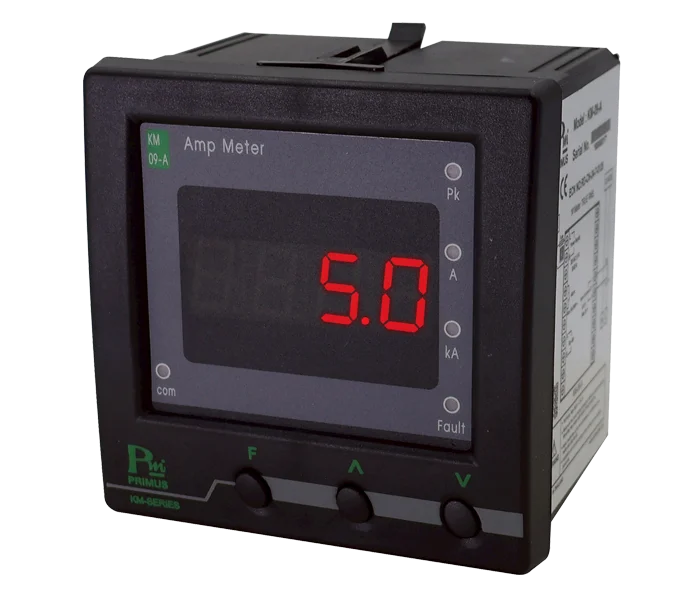

• 1 Phase Amp Meter : KM-09-A is a current meter for single-phase
electrical systems.
• Measurement range:
: Current 0.01–10 A (direct connection)
: Current up to 9,999 A (when used with CT)
• True RMS measurement for high accuracy.
• 1 Alarm Relay Output with 4 configurable alarm functions.
• Peak Hold function to display the maximum current value
in the system.
• LED indicators for operating status and electrical units.
• 7-segment display, 0.56 inch, 4 digits, 1 row.
1 Phase Amp Meter: KM-09-A is a current measurement meter designed for single-phase electrical systems. It features a measurement range of 0.01-10 A (for direct connection) and a maximum current of 9,999 A (when used with a CT). The device utilizes True RMS measurement for high accuracy. It is equipped with 1 Alarm Relay Output featuring 4 configurable alarm functions. A Peak Hold function is included to monitor the maximum current value in the system. The unit features LED indicators for operational status and electrical units, with a 1-row, 4-digit 0.56-inch 7-Segment display.
• 1 Phase Amp Meter : KM-09-A is a current meter for single-phase
electrical systems.
• Measurement range:
: Current 0.01–10 A (direct connection)
: Current up to 9,999 A (when used with CT)
• True RMS measurement for high accuracy.
• 1 Alarm Relay Output with 4 configurable alarm functions.
• Peak Hold function to display the maximum current value
in the system.
• LED indicators for operating status and electrical units.
• 7-segment display, 0.56 inch, 4 digits, 1 row.

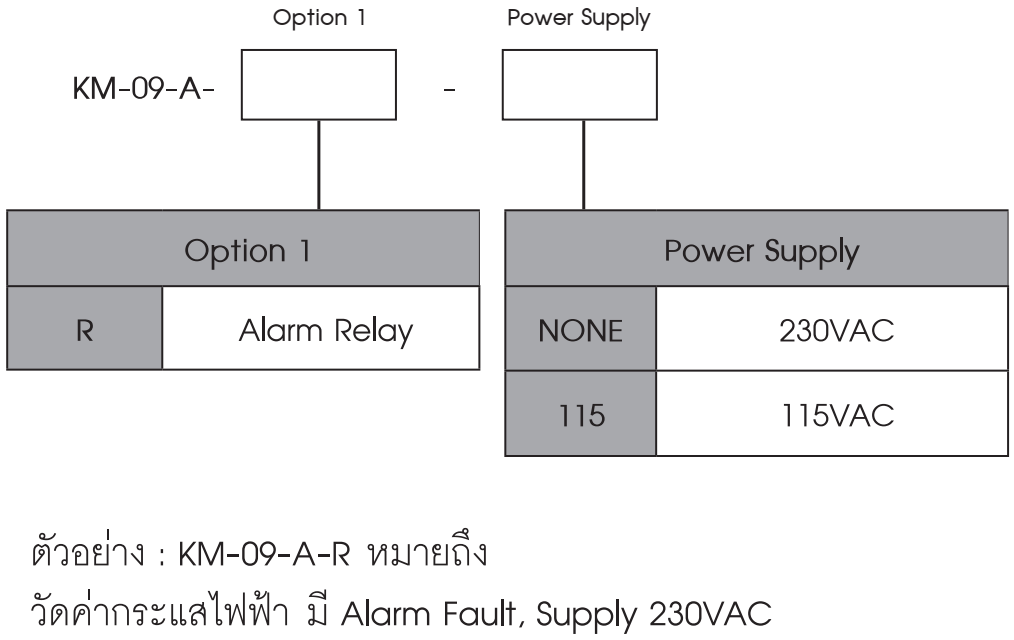

Enter the model information you want
