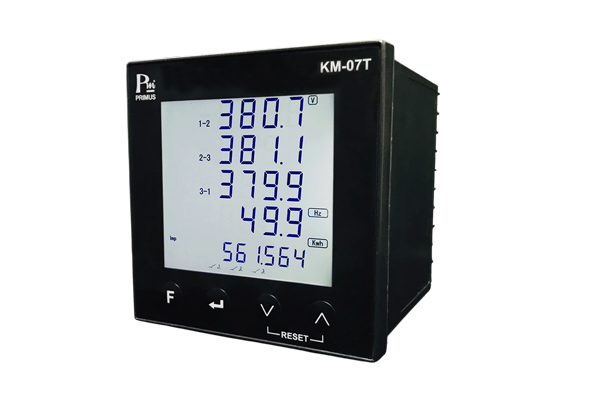

• Multifunction Power Meter For Modbus TCP/IP: KM-07T is
an electrical energy meter that can measure V (Line), V (Phase),
A (Phase), kW, kVA, kVar, kWh, kVAh, kVarh, PF, Hz, kW Demand,
Peak Demand, THD (Harmonic) up to 31 orders for
1 Phase / 3 Phase.
• PT Ratio can be set from 0.1–500.0 and CT Ratio from
1–2000 (CT5A), 1–9999 (CT1A).
• Pulse output and Analog 4–20 mA output.
• Has 2 Alarm Relays for setting High, Low, High Low Band,
High Low Range Alarm, as well as Alarm Protection, Over Voltage,
Under Voltage, Over Current, Phase Sequence, Phase Unbalance,
and Phase Loss.
• Can communicate through RS-485 Modbus RTU Protocol port or
Modbus TCP/IP Protocol (RTU Mode).
• Has Counter Function for receiving External Input signals from
Photoelectric Sensor, Proximity, Limit Switch, Contact to count
produced products and compare with consumed energy during
the specified period for product cost calculation.
• Has machine operating time counting function (Hour Counter) for
scheduling machine maintenance.
• LCD display screen.
KM-07T is a meter capable of measuring Volt, Amp, Watt, Var, VA, kWh, kvarh, and kVAh. In addition, it can measure
the Phase angle between current and voltage, and the % THD of Volt and Amp. It can also communicate through RS-485 using RS-485, Modbus RTU Protocol, and Modbus TCP/IP Protocol (RTU Mode). Measurement of kWh, kvarh, and kVAh is 10 digits with 3 decimal places. The Alarm Function will operate after KM-07T has started operating for 5 seconds, then it will check for various abnormalities.
• Multifunction Power Meter For Modbus TCP/IP: KM-07T is
an electrical energy meter that can measure V (Line), V (Phase),
A (Phase), kW, kVA, kVar, kWh, kVAh, kVarh, PF, Hz, kW Demand,
Peak Demand, THD (Harmonic) up to 31 orders for
1 Phase / 3 Phase.
• PT Ratio can be set from 0.1–500.0 and CT Ratio from
1–2000 (CT5A), 1–9999 (CT1A).
• Pulse output and Analog 4–20 mA output.
• Has 2 Alarm Relays for setting High, Low, High Low Band,
High Low Range Alarm, as well as Alarm Protection, Over Voltage,
Under Voltage, Over Current, Phase Sequence, Phase Unbalance,
and Phase Loss.
• Can communicate through RS-485 Modbus RTU Protocol port or
Modbus TCP/IP Protocol (RTU Mode).
• Has Counter Function for receiving External Input signals from
Photoelectric Sensor, Proximity, Limit Switch, Contact to count
produced products and compare with consumed energy during
the specified period for product cost calculation.
• Has machine operating time counting function (Hour Counter) for
scheduling machine maintenance.
• LCD display screen.
