• Multifunction Power Meter: KM-07 Meter for measuring
electrical energy in single-phase and three-phase power
systems.
• Measures: V (Line), V (Phase), A (Phase), kW, kVA, kVar,
kWh, kVAh, kVarh, PF, Hz, kW Demand, Peak Demand, and THD
(Harmonics) up to the 11th order for 1-phase / 3-phase systems.
• PT Ratio and CT Ratio configurable.
• True RMS measurement for high accuracy.
• Output options: Pulse output and Analog 4–20 mA.
• Communication via RS-485 port, Modbus RTU protocol.
• LCD display for measured values.

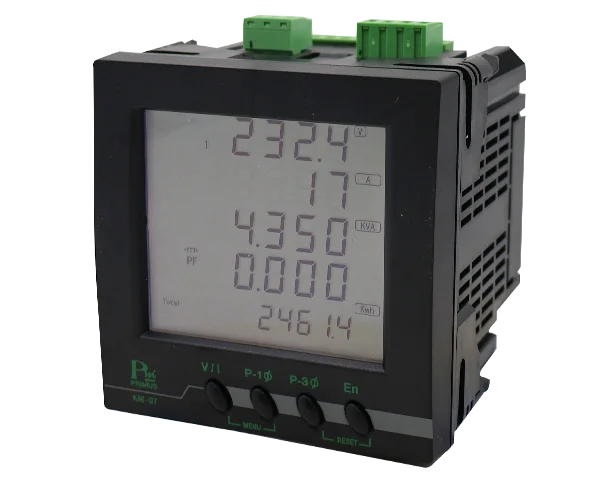

KM-07 is a multifunction power meter capable of measuring voltage (Volt), current (Amp), watt, var, VA, kWh, kvarh, and kVAh. In addition, it can measure the phase angle between current and voltage, as well as the percentage of total harmonic distortion (%THD) of voltage and current. It also supports communication via RS-485 Modbus RTU Protocol. The energy measurement capacity for kWh, kvarh, and kVAh is up to 13 digits (9,999,999,999,999).
• Multifunction Power Meter: KM-07 Meter for measuring
electrical energy in single-phase and three-phase power
systems.
• Measures: V (Line), V (Phase), A (Phase), kW, kVA, kVar,
kWh, kVAh, kVarh, PF, Hz, kW Demand, Peak Demand, and THD
(Harmonics) up to the 11th order for 1-phase / 3-phase systems.
• PT Ratio and CT Ratio configurable.
• True RMS measurement for high accuracy.
• Output options: Pulse output and Analog 4–20 mA.
• Communication via RS-485 port, Modbus RTU protocol.
• LCD display for measured values.

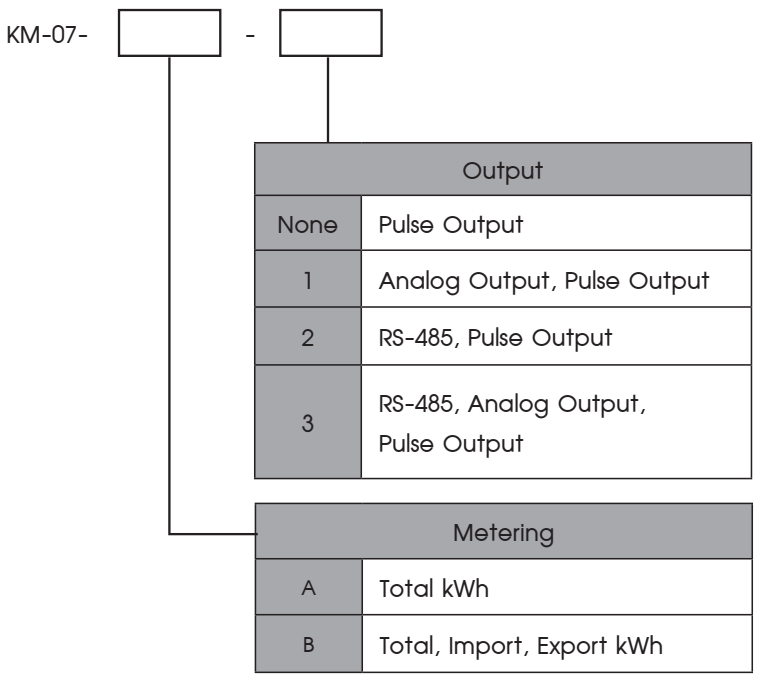

Enter the model information you want
