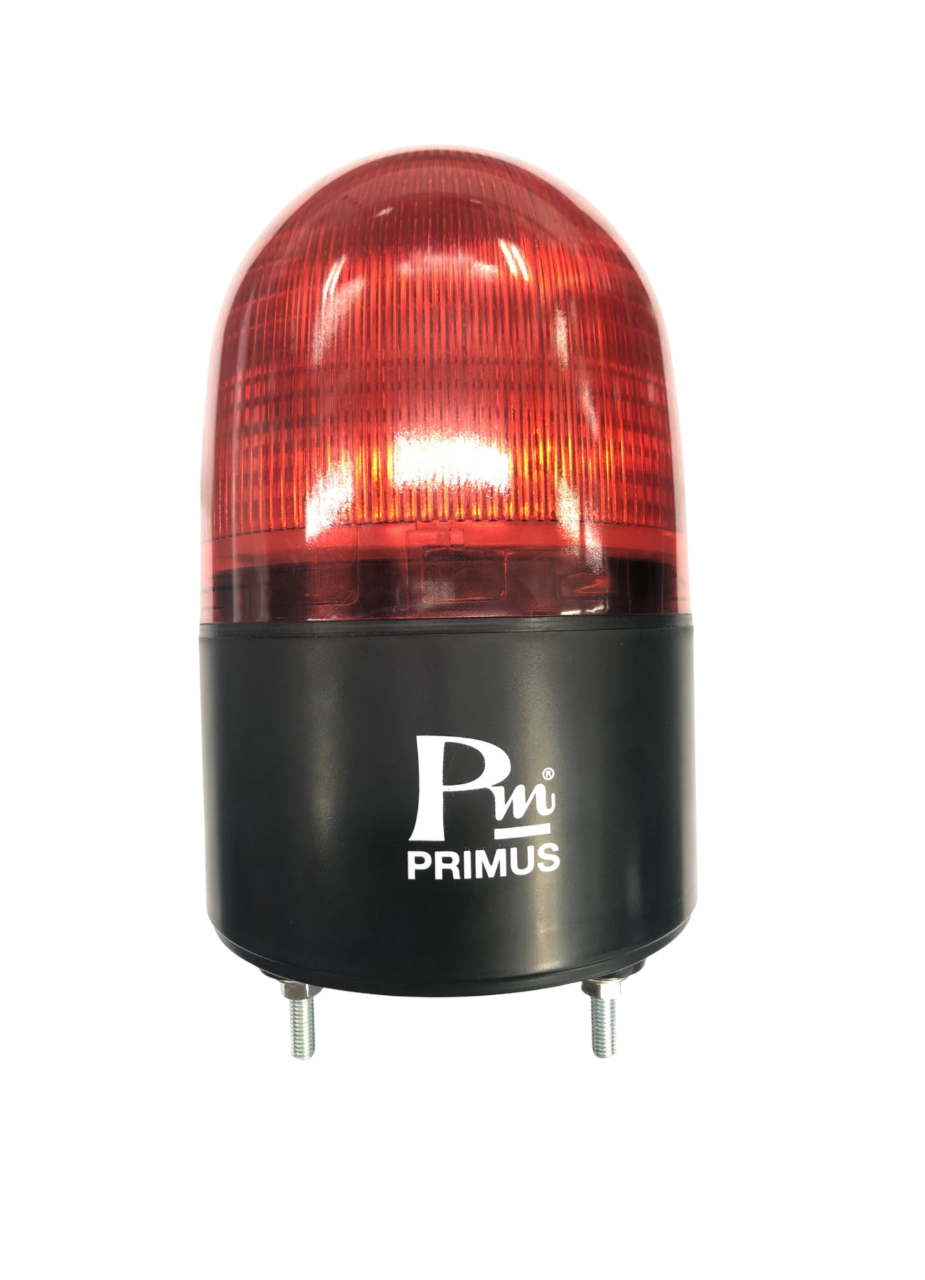

• Rotation Warning Light: TLW-01 / TLW-02 is a rotating warning
signal light.
• Available for both AC and DC power systems.
• Provides high brightness and long service life with
high-power LED.
• Three flashing patterns: Rotation pattern, Flashing pattern,
and Strobe pattern.
• Built-in buzzer with three alert modes, maximum sound
level 90 dB (at 1 meter).
• Push/Pull connection, compatible with NPN/PNP and
open collector.
• RS-485 Modbus RTU protocol communication.
• Anti-corrosion material, protection rating IP55
(upright installation), IP23 (inverted installation).
360° visibility.
TLW-01 / TLW-02 is a rotating warning signal light. It can be installed in both upright and inverted positions and is suitable for indoor applications. For outdoor installation, only the upright mounting position is supported. TLW-01 / TLW-02 operates with three flashing patterns: Rotation Pattern (continuous rotation at 175 ±10 flashes per minute) Flashing Pattern (flashing at 55 ±10 flashes per minute) Strobe Pattern (rotation with double flash at 75 ±10 flashes per minute) In addition, a buzzer provides audible alerts in three modes with a maximum sound level of 90 dB (at 1 meter) for situations where operators are far from the machine. Alert data can also be transmitted to a computer via the RS-485 Modbus RTU protocol.
• Rotation Warning Light: TLW-01 / TLW-02 is a rotating warning
signal light.
• Available for both AC and DC power systems.
• Provides high brightness and long service life with
high-power LED.
• Three flashing patterns: Rotation pattern, Flashing pattern,
and Strobe pattern.
• Built-in buzzer with three alert modes, maximum sound
level 90 dB (at 1 meter).
• Push/Pull connection, compatible with NPN/PNP and
open collector.
• RS-485 Modbus RTU protocol communication.
• Anti-corrosion material, protection rating IP55
(upright installation), IP23 (inverted installation).
360° visibility.
