Size: 48x96x80mm, 150x450x100mm, 200x850x100mm Input: Strain-Gauge 1.5, 2, 2.5, 3, 3.3 mV/V Alarm: 3 Alarm Excite Voltage: 5VDC 100mA, 10VDC 100mA Transfer Output: None, 4-20mA, 0-10V Communication: None, RS-485 Power Supply: 100-250VAC, 24VAC/VDC ±15%

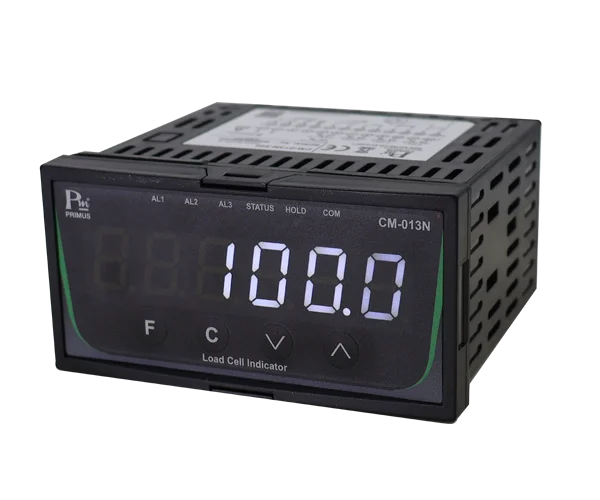

ㆍDigital Load Cell Indicator With Alarm : CM-013N/CM-CM-013B2 / CM-013B4 Series
A digital weight indicator that receives signals from a load cell (strain-gauge).
ㆍ4Accepts strain-gauge input 1.5, 2.0, 2.5, 3.0, 3.3 mV/V.
ㆍSelectable excitation voltage 5V or 10V.
ㆍ Supports 2 calibration methods:
- Calibration by load: calibration using actual weights, maximum resolution 2-8 points.
- Calibration by mV: calibration by setting mV values, 2 points.
ㆍCM-013B2 and CM-013B4 allow selection of weight units by attaching a sticker on
the display, such as kg, ton, etc.
ㆍ Error code function for abnormal operation;details are in the manual.
ㆍ3 digital inputs for commands such as Tare Zero, Hold, Max Peak Display, Min Peak Display,
Show mV, etc.
ㆍ 3 alarm relay outputs with 4 selectable functions.
ㆍ Transfer output 4-20 mA or 0-10 VDC, both Direct and Inverse.
ㆍCommunication with computer via RS-485 Modbus RTU port.
ㆍDisplay: 6-digit 7-segment, size 0.56 inch (CM-013N), 2.3 inch (CM-013B2), 4 inch (CM-01384).
Lock function to prevent changing settings via the display.
