Size: 48x96x80mm Input: 0-20mA, 4-20mA, 0-10V Alarm: 1 Alarm Source for sensor: 12VDC 30mA Transfer Output: None Communication: None Power Supply: 110Vac±15%, 220Vac±15%, 12-30Vac/Vdc

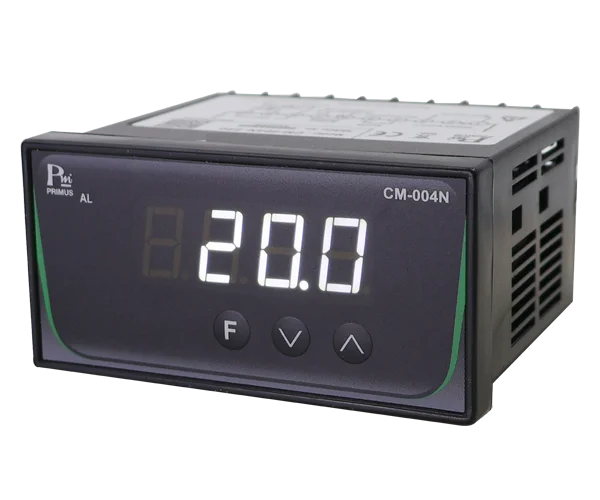

• Digital Indicator : CM-004N Series is a digital process indicator.
• Can receive 0-10VDC, 0-20mA, 4-20mA in one device.
• 1 Alarm Relay Output with 4 Selectable Functions.
• Display range: -1999 to 9999.
• Decimal point selectable up to 3 positions.
• Suitable for control cabinets to display motor speed from
inverter, DC drive, etc.
• Built-in DC source 12 VDC to supply transducer.
• 7-segment, 4-digit display, size 0.56 inches.
• Scale display adjustable from keypad by setting High Limit and
Low Limit range.
• Lock function to prevent unauthorized setting adjustments.
Only 3 left in stock
