• The TIM-94N-4CH Series is designed to measure and display standard analog signals, temperature, humidity, pressure, and values.
It supports 4 input channels, and each channel is an input isolated from the others.
• Display the result from 4 channels in auto and manual mode.
• Recieved Universal Input for each channel.
- Thermocouple - RTD (PT100) - PTC 1kΩ
- Current Analog : 0-20mA, 4-20mA
- Voltage Analog : 0-75mV, 0-150mV, 0-1VDC, 0-5VDC,
0-10VDC, ±0-75 mVDC, ±0-150 mVDC, ±0-1VDC, ±0-5VDC, ±0-10VDC.
• Input from Thermocouple, RTD (PT100), PTC 1kΩ can select measuring
unit in °C and °F.
• Absolute input function: the measured value will always be positive
even if the input terminals (+/–) are connected in reverse.
• Function operator edit PV Value Display to calculate PV value of each
channel (SUM, DIFF, AVG).
• Function Alarm Relay Output can check in case of Thermocouple
- RTD (PT100) - PTC 1kΩ broke or malfunction or no signal.
• Can communication with computer via RS-485 Modbus RTU.
• 4 Alarm Relay Outputs provides 4 function selectable for each
for each input channel.
• Lock function protect setting from sceen.
• 7-Segment display size 0.56 inches 4 digits and size 0.39 inches
1 digits shows channel operation of input.

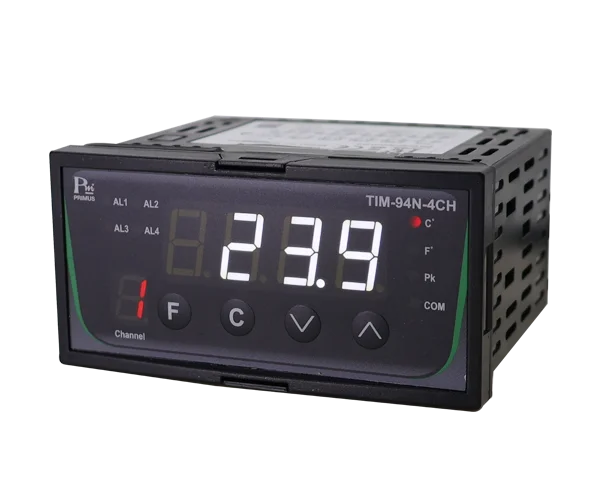

4 Channels Digital Indicator : TIM-94N-4CH Series is the indicator that shows the result of standard analog signal, temperature, humidity, pressure, and process, etc., with 4 channels (isolated from each other). It can display all 4 channels in Auto and Manual mode. This device receives input from a thermocouple, RTD (PT100), and PTC 1 kΩ, and is able to select the temperature unit °C and °F. In case the user switches +/- position, this device has an Operator Edit PV Value Display function to calculate PV value of each channel (SUM, DIFF, AVG), and can communicate with a computer via RS-485 Modbus RTU port. To protect values that change unexpectedly, this device has a Lock Function to protect the changed value from the screen. The 7-Segment display is 0.56 inches in size, with 4 digits and 0.39 inches in height, which shows the operation of the input channel.
• The TIM-94N-4CH Series is designed to measure and display standard analog signals, temperature, humidity, pressure, and values.
It supports 4 input channels, and each channel is an input isolated from the others.
• Display the result from 4 channels in auto and manual mode.
• Recieved Universal Input for each channel.
- Thermocouple - RTD (PT100) - PTC 1kΩ
- Current Analog : 0-20mA, 4-20mA
- Voltage Analog : 0-75mV, 0-150mV, 0-1VDC, 0-5VDC,
0-10VDC, ±0-75 mVDC, ±0-150 mVDC, ±0-1VDC, ±0-5VDC, ±0-10VDC.
• Input from Thermocouple, RTD (PT100), PTC 1kΩ can select measuring
unit in °C and °F.
• Absolute input function: the measured value will always be positive
even if the input terminals (+/–) are connected in reverse.
• Function operator edit PV Value Display to calculate PV value of each
channel (SUM, DIFF, AVG).
• Function Alarm Relay Output can check in case of Thermocouple
- RTD (PT100) - PTC 1kΩ broke or malfunction or no signal.
• Can communication with computer via RS-485 Modbus RTU.
• 4 Alarm Relay Outputs provides 4 function selectable for each
for each input channel.
• Lock function protect setting from sceen.
• 7-Segment display size 0.56 inches 4 digits and size 0.39 inches
1 digits shows channel operation of input.
