Size: 48x96x80mm Input: Sensor(NPN/PNP), Encoder, Contact Alarm: None Source for sensor: 15VDC 50mA Transfer Output: None Communication: None Power Supply: 220Vac±10%, 15-30Vac/Vdc
• Digital speedometer and distance meter, receives input from
NPN or PNP Photo Switch / Proximity
• Display with 7-Segment 4 digits, 0.56 inches (for CM-001-L)
and size 0.39 inches (for DCM-001 N)
• One alarm relay output with 4 Alarm functions in setting
- Process Value High Low Band Alarm
- Process Value High Alarm
- Process Value Low Alarm
- Process Value High Low Range Alarm

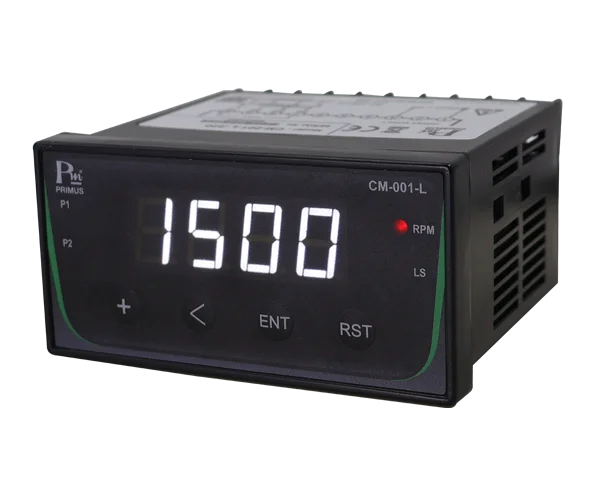

• Available for selection 2 sizes, CM-001-L (48 x96 mm.) and
DCM-001 N (33 x 75 mm.)
