Digital Preset Counter

• Digital Preset Counter: CMP-48N / CMP-72N / CMP-72TN Series
is a digital counting device.
• Operates as both a preset counter and a totalizer all in one.
• Multiplier and divider values can be set for both the preset counter
and the totalizer, and the initial value after reset can also be defined.

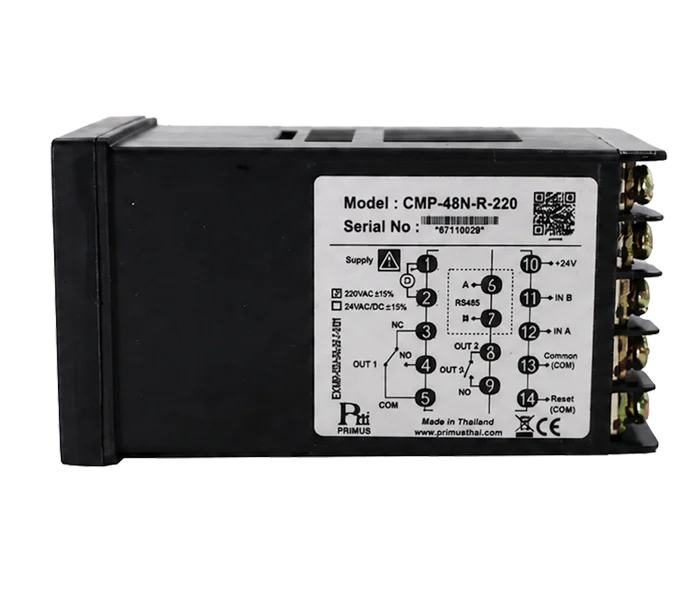

• CMP-48N and CMP-72N provide 2 relay outputs
for the preset counter.
• CMP-72TN provides 2 relay outputs for the preset counter and
1 relay output for the totalizer.
• Operation modes: Normal, Sum Up, Sum Down, And Up, And
Down, Hold Up.
• Up to 7 relay output modes selectable for the preset counter.
• Up to 3 relay output modes selectable for the totalizer
(for CMP-72TN).
• Digital inputs provided for count reset, total reset, and total display.
• Communication with a computer via RS-485 Modbus RTU.

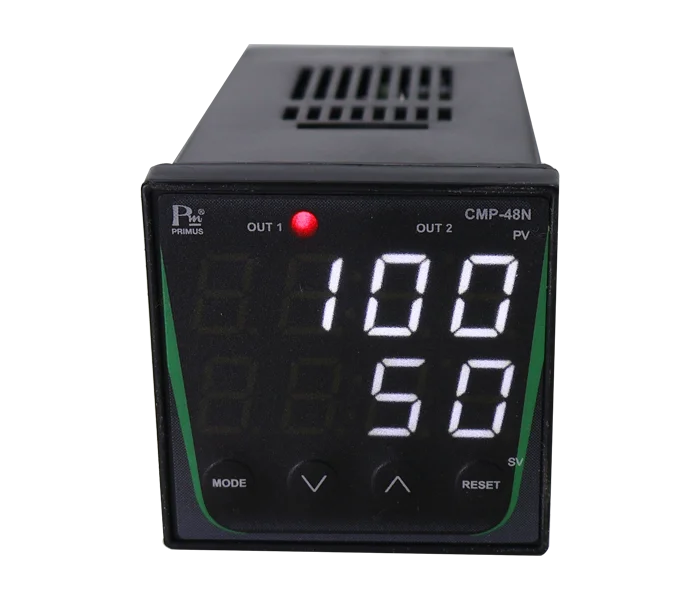

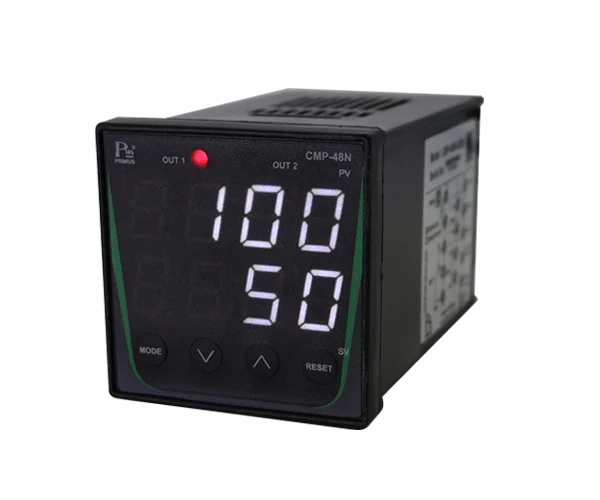

• CMP-48N is a preset counter with a 48×48 mm display.
• CMP-72N is a preset counter with a 72×72 mm display.
• CMP-72TN is a preset counter with totalizer and a 72×72 mm display.
• Accepts inputs from various devices such as photoelectric sensors,
proximity sensors, encoders, contacts, NPN, and PNP.
• Built-in DC source 24 VDC, 100 mA for supplying power to sensors.
• Timer input function provided to improve counting performance.
