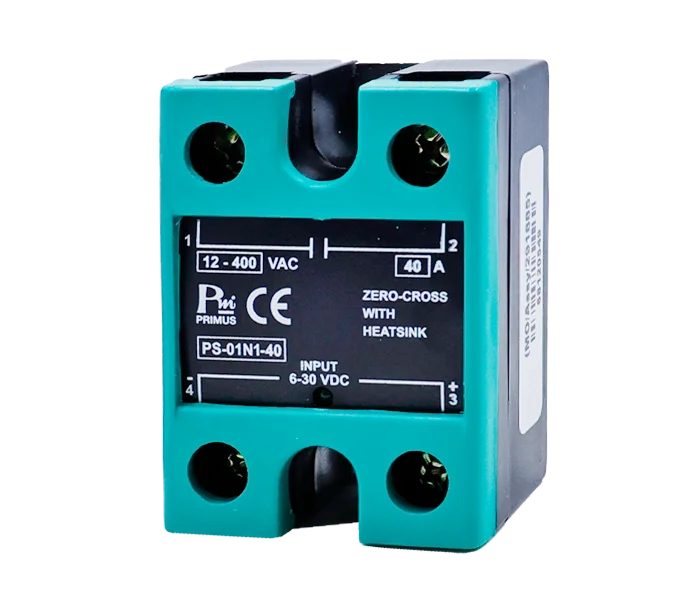

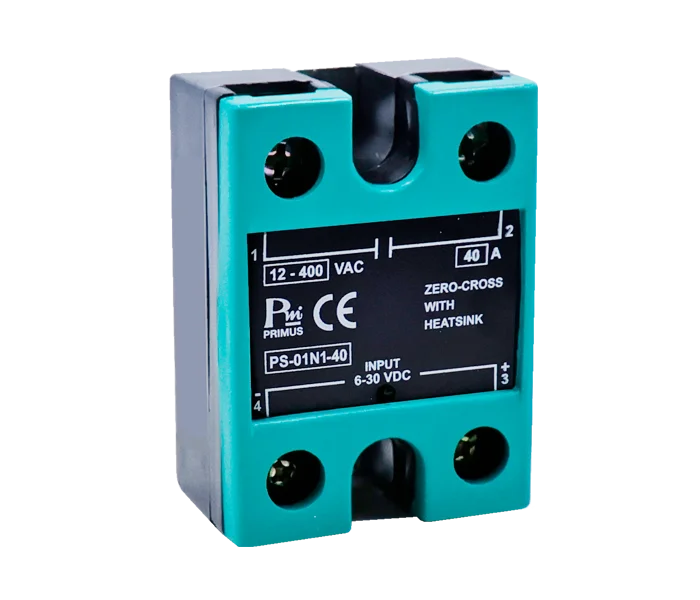

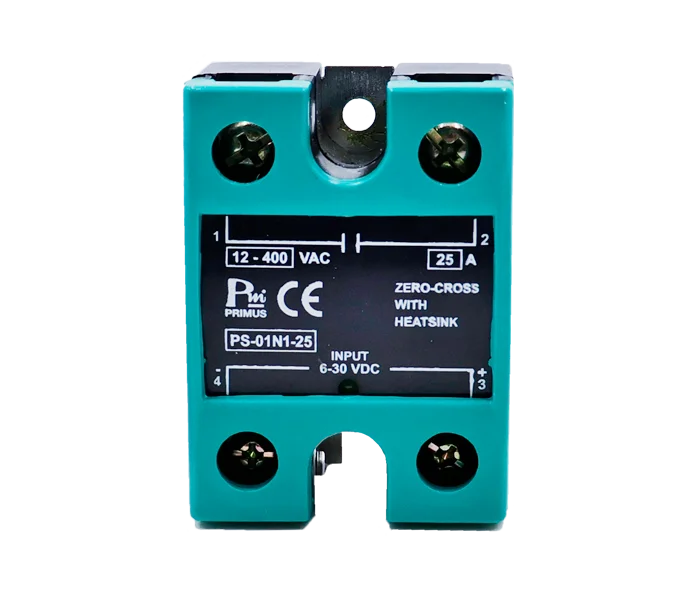

• Single Phase Solid State Relay PS-Series: ON/OFF device for
single-phase electrical circuits, 12–400 VAC.
• Supported Loads:
- ZERO CROSS (Resistive Load): Heater, light bulb.
- RANDOM (Inductive Load): Motor.
• Input Voltage: 6–30 VDC and 90–240 VAC.
• Current Ratings: 25A, 40A, 50A, 75A, 100A.
• Suitable for applications with frequent ON/OFF operation, since
the device has no contacts, preventing sparks on the contact
surface and providing long service life.
• Equipped with over-voltage protection circuit on the input side.
• Equipped with thermal protection circuit (cuts off operation
when high temperature occurs).
Single Phase Solid State Relay: PS-Series is a power switching device designed for single-phase systems with a rating of 12–400VAC. It is ideally suited for applications requiring high-frequency ON/OFF switching because it has no moving contacts, which eliminates arcing and significantly extends the operational lifespan. The unit features built-in Input Over-Voltage Protection and Over-Temperature Protection (automatically cutting off operation when the temperature exceeds safe limits).
• Single Phase Solid State Relay PS-Series: ON/OFF device for
single-phase electrical circuits, 12–400 VAC.
• Supported Loads:
- ZERO CROSS (Resistive Load): Heater, light bulb.
- RANDOM (Inductive Load): Motor.
• Input Voltage: 6–30 VDC and 90–240 VAC.
• Current Ratings: 25A, 40A, 50A, 75A, 100A.
• Suitable for applications with frequent ON/OFF operation, since
the device has no contacts, preventing sparks on the contact
surface and providing long service life.
• Equipped with over-voltage protection circuit on the input side.
• Equipped with thermal protection circuit (cuts off operation
when high temperature occurs).
