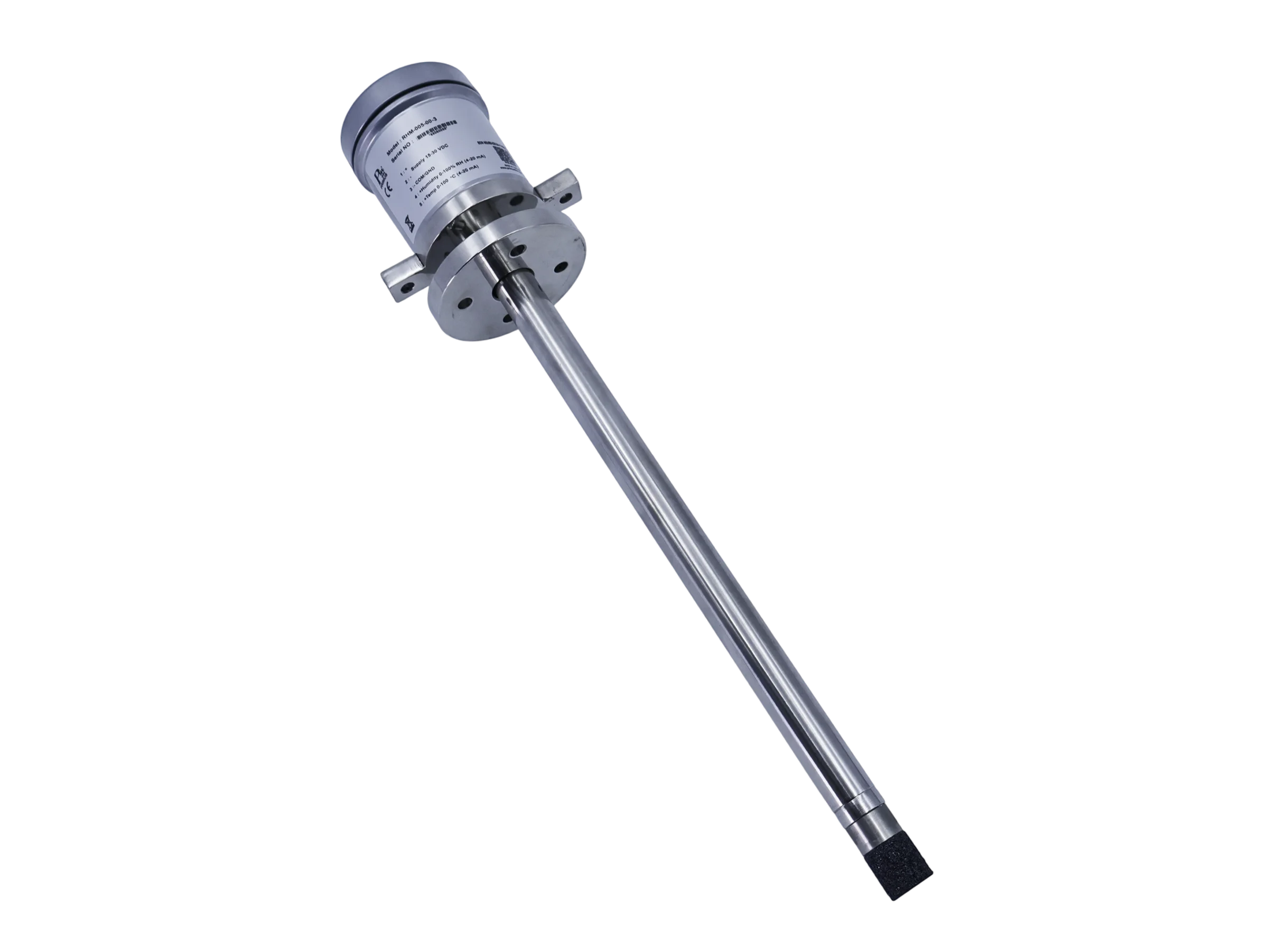

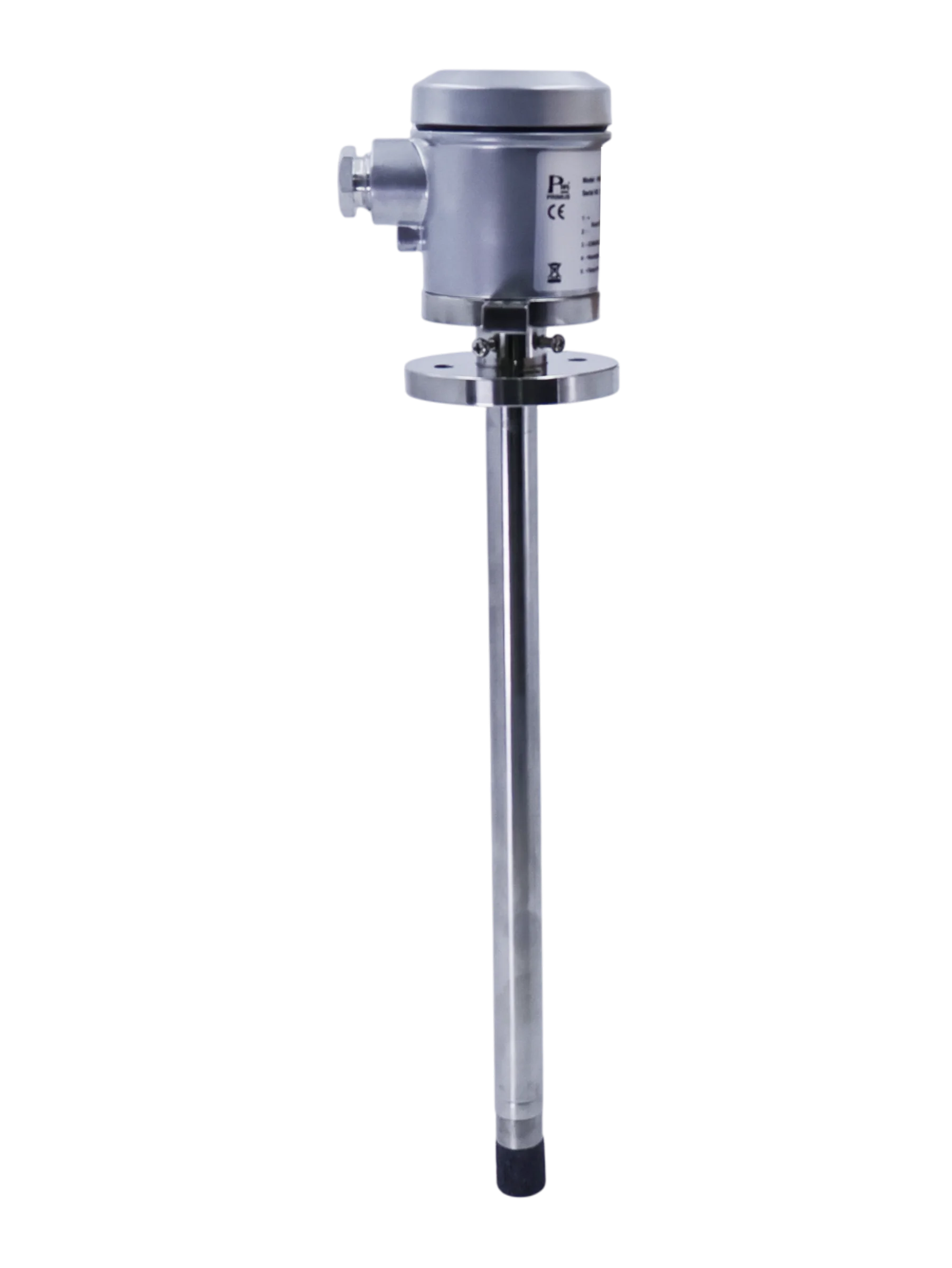

• High Temp. Duct Mount Humidity & Temperature 2 Wire Transmitter RHM-H Series :
• Temperature and relative humidity measuring device in Duct Mount that converts
to a standard electrical output signal DC Current 4.20mA 2 wires.
Temperature Range 0-150 °C.
• Humidity Range 0-100% RH.
• Suitable for measuring temperature and humidity in ovens (up to 150 °C), dehumidifier
tanks, cabinets, and rooms.Install by inserting the probe into the measuring space while
keeping the head with the electronic circuit outside, allowing use in high-temperature
environments.
• There are 2 sizes of Long probe tube (Probe tube made of stainless).
- Probe tube length 300 mm.
- Probe tube length 500 mm.
• Equipped with a stainless 316I filter at the probe tip to protect against dust, and a flange
for easy installation.
High Temp. Duct Mount Humidity & Temperature 2-Wire Transmitter: RHM-H-Series is a specialized device designed for duct-mount measurement of ambient temperature and relative humidity, converting these values into a standard 2-wire 4–20 mA DC current signal. This series is specifically engineered for high-temperature applications, making it ideal for monitoring conditions within drying ovens with temperatures up to 150°C, as well as sterilization tanks and dehumidification chambers.
• High Temp. Duct Mount Humidity & Temperature 2 Wire Transmitter RHM-H Series :
• Temperature and relative humidity measuring device in Duct Mount that converts
to a standard electrical output signal DC Current 4.20mA 2 wires.
Temperature Range 0-150 °C.
• Humidity Range 0-100% RH.
• Suitable for measuring temperature and humidity in ovens (up to 150 °C), dehumidifier
tanks, cabinets, and rooms.Install by inserting the probe into the measuring space while
keeping the head with the electronic circuit outside, allowing use in high-temperature
environments.
• There are 2 sizes of Long probe tube (Probe tube made of stainless).
- Probe tube length 300 mm.
- Probe tube length 500 mm.
• Equipped with a stainless 316I filter at the probe tip to protect against dust, and a flange
for easy installation.
