Temperature and relative humidity measuring device that converts
temperature and humidity signals into a standard electrical output signal.
- DC Current 4-20mA
- DC Voltage 0-10VDC
- RS-485 (MODBUS RTU Protocol),
• Baud Rate : 2400, 4800, 9600, 19200, 38400
• Temperature Range 0-100C.
• Humidity Range 0-100% RH.

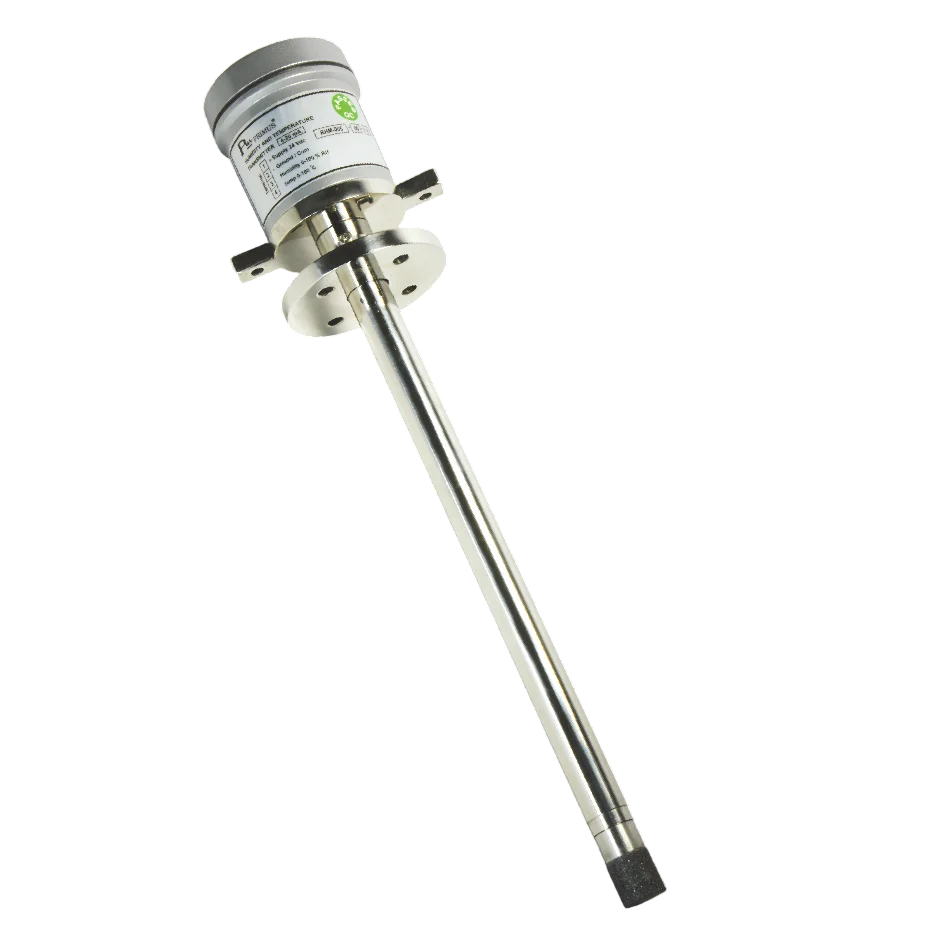

• There are 2 size of long probe tube (Probe made of stainless material).
- Probe tube length 300 mm.
- Probe tube length 500 mm.
• Suitable for measuring temperature and humidity in ovens up to 100 "C, dehumidifier tanks,
cabinets, sterilizing tank and rooms. Install by inserting the probe into the measuring space
while keeping the head with the electronic circuit outside, allowing use in high-temperature
environments.
• Equipped with a filter at the probe tip to protect against dust, and a flange
for easy installation.

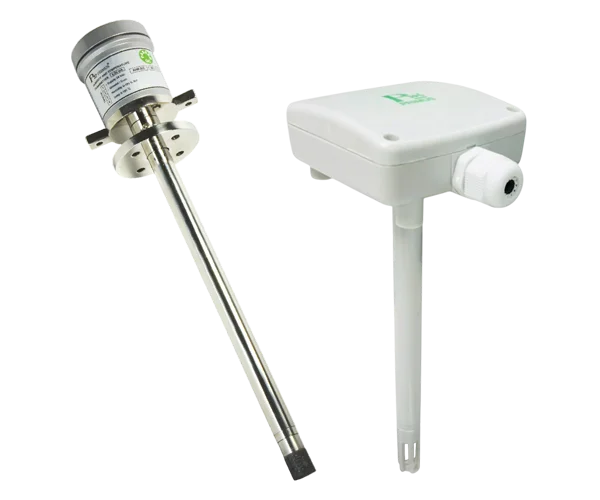

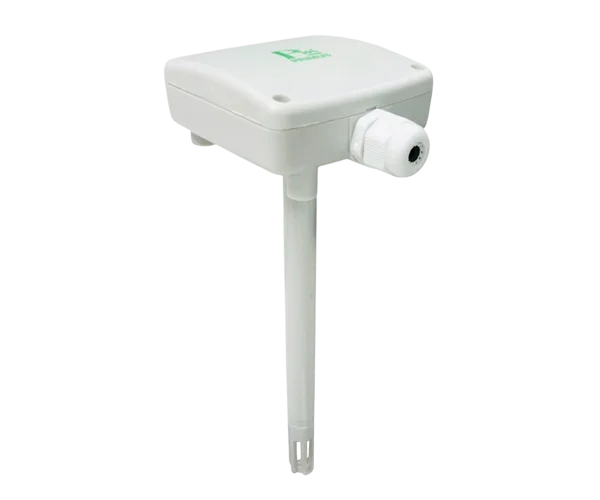

Duct Mount Humidity & Temperature Transmitter: RHM-Series is a high-performance device designed to convert ambient temperature and relative humidity into standard electrical output signals. Featuring measurement ranges of 0–100°C and 0–100% RH, this series is specifically engineered for duct-mount installations in demanding environments. It is ideal for monitoring conditions within drying ovens, sterilization tanks, and dehumidification chambers with operating temperatures up to 100°C.
Temperature and relative humidity measuring device that converts
temperature and humidity signals into a standard electrical output signal.
- DC Current 4-20mA
- DC Voltage 0-10VDC
- RS-485 (MODBUS RTU Protocol),
• Baud Rate : 2400, 4800, 9600, 19200, 38400
• Temperature Range 0-100C.
• Humidity Range 0-100% RH.
• There are 2 size of long probe tube (Probe made of stainless material).
- Probe tube length 300 mm.
- Probe tube length 500 mm.
• Suitable for measuring temperature and humidity in ovens up to 100 "C, dehumidifier tanks,
cabinets, sterilizing tank and rooms. Install by inserting the probe into the measuring space
while keeping the head with the electronic circuit outside, allowing use in high-temperature
environments.
• Equipped with a filter at the probe tip to protect against dust, and a flange
for easy installation.

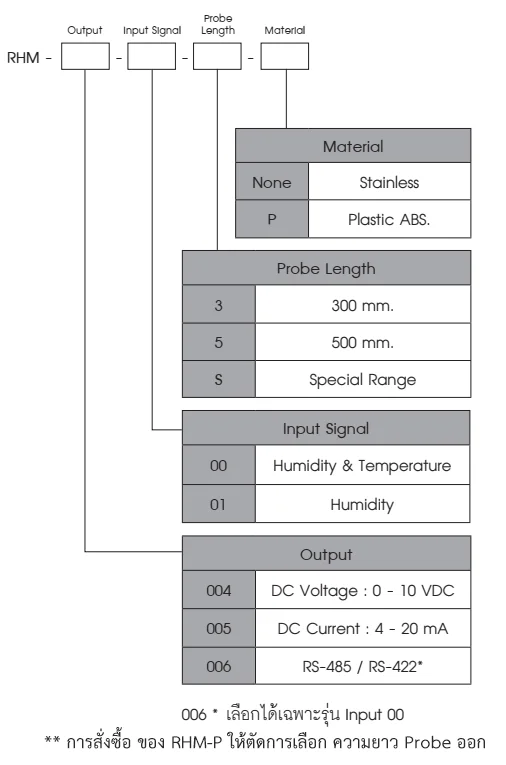

Enter the model information you want
No application picture available
